Extended lifetime in 800V+ applications with high-performance PI insulation
SHXLife® 240 (PI) Flat
SHXLife® 240 (PI) Flat combines the innovative SHXLife® insulation concept with a highly durable polyimide (PI) coating. This solution is specifically designed for applications exposed to extreme thermal, electrical, and chemical stresses – ensuring maximum lifetime, reliability, and winding efficiency.
The challenge
Modern traction motors and e-drives operate under harsh conditions, placing extreme demands on flat wire insulation systems:
- High Operating Temperatures: Continuous operation in high-temperature environments requires superior thermal insulation.
- Voltage Fluctuations: Power electronics and PWM generate electrical stress and partial discharge risks.
- Aggressive Cooling Media: New generation coolants can chemically attack conventional enamel coatings.
- Increasing Lifetime Requirements: Electrification and industrial use cases demand durable, failure-resistant wire solutions.
Our Solution
Extended lifetime with PI durability
SHXLife® 240 (PI) Flat combines the SHXLife® insulation system with the outstanding properties of polyimide coating, resulting in significantly extended wire performance under severe electrical, thermal, and chemical loads.

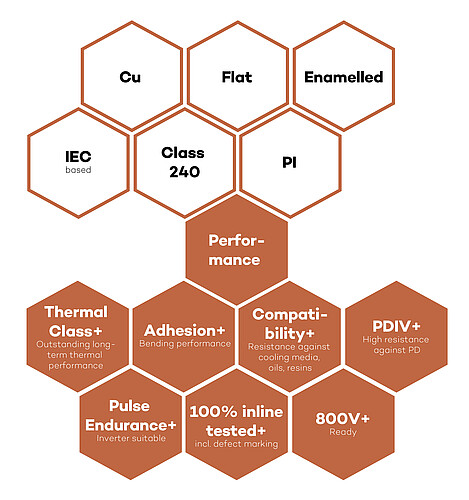

Your advantages at a glance
High thermal stability
Class 240 insulation for continuous operation at high temperatures
Optimized copper fill factor
Thinner insulation for improved winding performance
Extended lifetime under electrical load
Excellent resistance to partial discharge and voltage spikes
Scalability for serial production
High-performance wire available on an industrial scale
Superior chemical resistance
Withstands exposure to oils, coolants, ATF, and other aggressive industrial media
Why choose SHXLife® 240 (PI) Flat?
- Maximized PDIV: Minimizes early breakdown risk under high-voltage stress.
- Outstanding Thermal Performance: Designed for long-term stability at elevated temperatures.
- Excellent Chemical Resistance: Ideal for e-mobility and industrial systems using aggressive cooling fluids.
Alternative SHTherm® 240 (PI) Flat
For applications that require not only chemical and thermal resistance but also increased insulation strength and mechanical robustness, SHTherm® 240 (PI) Flat is the right choice.
- The increased layer thickness of the SHTherm® series offers additional safety reserves against mechanical stresses.
Digital magnet wire slide rule
With the digital magnet wire slide rule we have brought the well-known and popular handy tool from the desk to the desktop. Simply enter the desired nominal wire diameter via the input field or use the slider. At a glance you will find useful information on enamelled copper and aluminium wires based on IEC 60317-0-1.
- 0.030 mm
- 0.040 mm
- 0.045 mm
- 0.050 mm
- 0.053 mm
- 0.056 mm
- 0.060 mm
- 0.063 mm
- 0.067 mm
- 0.071 mm
- 0.075 mm
- 0.080 mm
- 0.085 mm
- 0.090 mm
- 0.095 mm
- 0.100 mm
- 0.106 mm
- 0.112 mm
- 0.118 mm
- 0.125 mm
- 0.132 mm
- 0.140 mm
- 0.150 mm
- 0.160 mm
- 0.170 mm
- 0.180 mm
- 0.190 mm
- 0.200 mm
- 0.212 mm
- 0.224 mm
- 0.236 mm
- 0.250 mm
- 0.265 mm
- 0.280 mm
- 0.300 mm
- 0.315 mm
- 0.335 mm
- 0.355 mm
- 0.375 mm
- 0.400 mm
- 0.425 mm
- 0.450 mm
- 0.475 mm
- 0.500 mm
- 0.530 mm
- 0.560 mm
- 0.600 mm
- 0.630 mm
- 0.670 mm
- 0.710 mm
- 0.750 mm
- 0.800 mm
- 0.850 mm
- 0.900 mm
- 0.950 mm
- 1.000 mm
- 1.060 mm
- 1.120 mm
- 1.180 mm
- 1.250 mm
- 1.320 mm
- 1.400 mm
- 1.500 mm
- 1.600 mm
- 1.700 mm
- 1.800 mm
- 1.900 mm
- 2.000 mm
- 2.120 mm
- 2.240 mm
- 2.360 mm
- 2.500 mm
- 2.650 mm
- 2.800 mm
- 3.000 mm
- 3.150 mm
- 3.350 mm
- 3.550 mm
- 3.750 mm
- 4.000 mm
- 4.250 mm
- 4.500 mm
- 4.750 mm
- 5.000 mm
| Conductor nominal Ø | 0.030 | mm | |
| Conductor cross section | 0.001 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.002 | kg/km | |
| Copper | Resistance min. | 21.765 | Ω/m |
| Resistance max. | 26.601 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.006 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.033 | mm | |
| Enamelled grade 1 max. | 0.037 | mm | |
| Enamelled grade 2 min. | 0.038 | mm | |
| Enamelled grade 2 max. | 0.041 | mm | |
| Conductor nominal Ø | 0.040 | mm | |
| Conductor cross section | 0.001 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.003 | kg/km | |
| Copper | Resistance min. | 12.379 | Ω/m |
| Resistance max. | 14.827 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.011 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.044 | mm | |
| Enamelled grade 1 max. | 0.049 | mm | |
| Enamelled grade 2 min. | 0.050 | mm | |
| Enamelled grade 2 max. | 0.054 | mm | |
| Conductor nominal Ø | 0.045 | mm | |
| Conductor cross section | 0.002 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.004 | kg/km | |
| Copper | Resistance min. | 9.781 | Ω/m |
| Resistance max. | 11.715 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.014 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.050 | mm | |
| Enamelled grade 1 max. | 0.055 | mm | |
| Enamelled grade 2 min. | 0.056 | mm | |
| Enamelled grade 2 max. | 0.061 | mm | |
| Conductor nominal Ø | 0.050 | mm | |
| Conductor cross section | 0.002 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.005 | kg/km | |
| Copper | Resistance min. | 7.9224 | Ω/m |
| Resistance max. | 9.4894 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.018 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.055 | mm | |
| Enamelled grade 1 max. | 0.060 | mm | |
| Enamelled grade 2 min. | 0.061 | mm | |
| Enamelled grade 2 max. | 0.066 | mm | |
| Conductor nominal Ø | 0.053 | mm | |
| Conductor cross section | 0.002 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.006 | kg/km | |
| Copper | Resistance min. | 7.0509 | Ω/m |
| Resistance max. | 8.4456 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.020 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.059 | mm | |
| Enamelled grade 1 max. | 0.064 | mm | |
| Enamelled grade 2 min. | 0.065 | mm | |
| Enamelled grade 2 max. | 0.070 | mm | |
| Conductor nominal Ø | 0.056 | mm | |
| Conductor cross section | 0.002 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.007 | kg/km | |
| Copper | Resistance min. | 6.3157 | Ω/m |
| Resistance max. | 7.5649 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.022 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.062 | mm | |
| Enamelled grade 1 max. | 0.067 | mm | |
| Enamelled grade 2 min. | 0.068 | mm | |
| Enamelled grade 2 max. | 0.074 | mm | |
| Conductor nominal Ø | 0.060 | mm | |
| Conductor cross section | 0.003 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.008 | kg/km | |
| Copper | Resistance min. | 5.5017 | Ω/m |
| Resistance max. | 6.5899 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.025 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.066 | mm | |
| Enamelled grade 1 max. | 0.072 | mm | |
| Enamelled grade 2 min. | 0.073 | mm | |
| Enamelled grade 2 max. | 0.079 | mm | |
| Conductor nominal Ø | 0.063 | mm | |
| Conductor cross section | 0.003 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.008 | kg/km | |
| Copper | Resistance min. | 4.9902 | Ω/m |
| Resistance max. | 5.9772 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.028 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.069 | mm | |
| Enamelled grade 1 max. | 0.076 | mm | |
| Enamelled grade 2 min. | 0.077 | mm | |
| Enamelled grade 2 max. | 0.083 | mm | |
| Conductor nominal Ø | 0.067 | mm | |
| Conductor cross section | 0.004 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.010 | kg/km | |
| Copper | Resistance min. | 4.4121 | Ω/m |
| Resistance max. | 5.2848 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.031 | kg/km | |
| Ø | Conductor min. | 0.064 | mm |
| Conductor max. | 0.070 | mm | |
| Enamelled grade 1 min. | 0.074 | mm | |
| Enamelled grade 1 max. | 0.080 | mm | |
| Enamelled grade 2 min. | 0.081 | mm | |
| Enamelled grade 2 max. | 0.088 | mm | |
| Conductor nominal Ø | 0.071 | mm | |
| Conductor cross section | 0.004 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.011 | kg/km | |
| Copper | Resistance min. | 3.9290 | Ω/m |
| Resistance max. | 4.7061 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.035 | kg/km | |
| Ø | Conductor min. | 0.068 | mm |
| Conductor max. | 0.074 | mm | |
| Enamelled grade 1 min. | 0.078 | mm | |
| Enamelled grade 1 max. | 0.084 | mm | |
| Enamelled grade 2 min. | 0.085 | mm | |
| Enamelled grade 2 max. | 0.091 | mm | |
| Conductor nominal Ø | 0.075 | mm | |
| Conductor cross section | 0.004 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.012 | kg/km | |
| Copper | Resistance min. | 3.5471 | Ω/m |
| Resistance max. | 4.2346 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.039 | kg/km | |
| Ø | Conductor min. | 0.072 | mm |
| Conductor max. | 0.078 | mm | |
| Enamelled grade 1 min. | 0.082 | mm | |
| Enamelled grade 1 max. | 0.089 | mm | |
| Enamelled grade 2 min. | 0.090 | mm | |
| Enamelled grade 2 max. | 0.095 | mm | |
| Conductor nominal Ø | 0.080 | mm | |
| Conductor cross section | 0.005 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.014 | kg/km | |
| Copper | Resistance min. | 3.1326 | Ω/m |
| Resistance max. | 3.7025 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.045 | kg/km | |
| Ø | Conductor min. | 0.077 | mm |
| Conductor max. | 0.083 | mm | |
| Enamelled grade 1 min. | 0.087 | mm | |
| Enamelled grade 1 max. | 0.094 | mm | |
| Enamelled grade 2 min. | 0.095 | mm | |
| Enamelled grade 2 max. | 0.101 | mm | |
| Conductor nominal Ø | 0.085 | mm | |
| Conductor cross section | 0.006 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.015 | kg/km | |
| Copper | Resistance min. | 2.7867 | Ω/m |
| Resistance max. | 3.2648 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.051 | kg/km | |
| Ø | Conductor min. | 0.082 | mm |
| Conductor max. | 0.088 | mm | |
| Enamelled grade 1 min. | 0.093 | mm | |
| Enamelled grade 1 max. | 0.100 | mm | |
| Enamelled grade 2 min. | 0.101 | mm | |
| Enamelled grade 2 max. | 0.107 | mm | |
| Conductor nominal Ø | 0.090 | mm | |
| Conductor cross section | 0.006 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.017 | kg/km | |
| Copper | Resistance min. | 2.4951 | Ω/m |
| Resistance max. | 2.9003 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.057 | kg/km | |
| Ø | Conductor min. | 0.087 | mm |
| Conductor max. | 0.093 | mm | |
| Enamelled grade 1 min. | 0.098 | mm | |
| Enamelled grade 1 max. | 0.105 | mm | |
| Enamelled grade 2 min. | 0.106 | mm | |
| Enamelled grade 2 max. | 0.113 | mm | |
| Conductor nominal Ø | 0.095 | mm | |
| Conductor cross section | 0.007 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.019 | kg/km | |
| Copper | Resistance min. | 2.2470 | Ω/m |
| Resistance max. | 2.5936 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.063 | kg/km | |
| Ø | Conductor min. | 0.092 | mm |
| Conductor max. | 0.098 | mm | |
| Enamelled grade 1 min. | 0.103 | mm | |
| Enamelled grade 1 max. | 0.111 | mm | |
| Enamelled grade 2 min. | 0.112 | mm | |
| Enamelled grade 2 max. | 0.119 | mm | |
| Conductor nominal Ø | 0.100 | mm | |
| Conductor cross section | 0.008 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.021 | kg/km | |
| Copper | Resistance min. | 2.0342 | Ω/m |
| Resistance max. | 2.3331 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.070 | kg/km | |
| Ø | Conductor min. | 0.097 | mm |
| Conductor max. | 0.103 | mm | |
| Enamelled grade 1 min. | 0.108 | mm | |
| Enamelled grade 1 max. | 0.117 | mm | |
| Enamelled grade 2 min. | 0.118 | mm | |
| Enamelled grade 2 max. | 0.125 | mm | |
| Conductor nominal Ø | 0.106 | mm | |
| Conductor cross section | 0.009 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.024 | kg/km | |
| Copper | Resistance min. | 1.8164 | Ω/m |
| Resistance max. | 2.0692 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.079 | kg/km | |
| Ø | Conductor min. | 0.103 | mm |
| Conductor max. | 0.109 | mm | |
| Enamelled grade 1 min. | 0.115 | mm | |
| Enamelled grade 1 max. | 0.123 | mm | |
| Enamelled grade 2 min. | 0.124 | mm | |
| Enamelled grade 2 max. | 0.132 | mm | |
| Conductor nominal Ø | 0.112 | mm | |
| Conductor cross section | 0.010 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.027 | kg/km | |
| Copper | Resistance min. | 1.6318 | Ω/m |
| Resistance max. | 1.8407 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.088 | kg/km | |
| Ø | Conductor min. | 0.109 | mm |
| Conductor max. | 0.115 | mm | |
| Enamelled grade 1 min. | 0.121 | mm | |
| Enamelled grade 1 max. | 0.130 | mm | |
| Enamelled grade 2 min. | 0.131 | mm | |
| Enamelled grade 2 max. | 0.139 | mm | |
| Conductor nominal Ø | 0.118 | mm | |
| Conductor cross section | 0.011 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.030 | kg/km | |
| Copper | Resistance min. | 1.4740 | Ω/m |
| Resistance max. | 1.6599 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.098 | kg/km | |
| Ø | Conductor min. | 0.115 | mm |
| Conductor max. | 0.121 | mm | |
| Enamelled grade 1 min. | 0.128 | mm | |
| Enamelled grade 1 max. | 0.136 | mm | |
| Enamelled grade 2 min. | 0.137 | mm | |
| Enamelled grade 2 max. | 0.145 | mm | |
| Conductor nominal Ø | 0.125 | mm | |
| Conductor cross section | 0.012 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.033 | kg/km | |
| Copper | Resistance min. | 1.3172 | Ω/m |
| Resistance max. | 1.4749 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.109 | kg/km | |
| Ø | Conductor min. | 0.122 | mm |
| Conductor max. | 0.128 | mm | |
| Enamelled grade 1 min. | 0.135 | mm | |
| Enamelled grade 1 max. | 0.144 | mm | |
| Enamelled grade 2 min. | 0.145 | mm | |
| Enamelled grade 2 max. | 0.154 | mm | |
| Conductor nominal Ø | 0.132 | mm | |
| Conductor cross section | 0.014 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.037 | kg/km | |
| Copper | Resistance min. | 1.1841 | Ω/m |
| Resistance max. | 1.3192 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.122 | kg/km | |
| Ø | Conductor min. | 0.129 | mm |
| Conductor max. | 0.135 | mm | |
| Enamelled grade 1 min. | 0.143 | mm | |
| Enamelled grade 1 max. | 0.152 | mm | |
| Enamelled grade 2 min. | 0.153 | mm | |
| Enamelled grade 2 max. | 0.162 | mm | |
| Conductor nominal Ø | 0.140 | mm | |
| Conductor cross section | 0.015 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.042 | kg/km | |
| Copper | Resistance min. | 1.0553 | Ω/m |
| Resistance max. | 1.1696 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.137 | kg/km | |
| Ø | Conductor min. | 0.137 | mm |
| Conductor max. | 0.143 | mm | |
| Enamelled grade 1 min. | 0.151 | mm | |
| Enamelled grade 1 max. | 0.160 | mm | |
| Enamelled grade 2 min. | 0.161 | mm | |
| Enamelled grade 2 max. | 0.171 | mm | |
| Conductor nominal Ø | 0.150 | mm | |
| Conductor cross section | 0.018 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.048 | kg/km | |
| Copper | Resistance min. | 0.9219 | Ω/m |
| Resistance max. | 1.0159 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.158 | kg/km | |
| Ø | Conductor min. | 0.147 | mm |
| Conductor max. | 0.153 | mm | |
| Enamelled grade 1 min. | 0.162 | mm | |
| Enamelled grade 1 max. | 0.171 | mm | |
| Enamelled grade 2 min. | 0.172 | mm | |
| Enamelled grade 2 max. | 0.182 | mm | |
| Conductor nominal Ø | 0.160 | mm | |
| Conductor cross section | 0.020 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.054 | kg/km | |
| Copper | Resistance min. | 0.8122 | Ω/m |
| Resistance max. | 0.8906 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.179 | kg/km | |
| Ø | Conductor min. | 0.157 | mm |
| Conductor max. | 0.163 | mm | |
| Enamelled grade 1 min. | 0.172 | mm | |
| Enamelled grade 1 max. | 0.182 | mm | |
| Enamelled grade 2 min. | 0.183 | mm | |
| Enamelled grade 2 max. | 0.194 | mm | |
| Conductor nominal Ø | 0.170 | mm | |
| Conductor cross section | 0.023 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.061 | kg/km | |
| Copper | Resistance min. | 0.7211 | Ω/m |
| Resistance max. | 0.7871 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.202 | kg/km | |
| Ø | Conductor min. | 0.167 | mm |
| Conductor max. | 0.173 | mm | |
| Enamelled grade 1 min. | 0.183 | mm | |
| Enamelled grade 1 max. | 0.194 | mm | |
| Enamelled grade 2 min. | 0.195 | mm | |
| Enamelled grade 2 max. | 0.205 | mm | |
| Conductor nominal Ø | 0.180 | mm | |
| Conductor cross section | 0.025 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.069 | kg/km | |
| Copper | Resistance min. | 0.6444 | Ω/m |
| Resistance max. | 0.7007 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.227 | kg/km | |
| Ø | Conductor min. | 0.177 | mm |
| Conductor max. | 0.183 | mm | |
| Enamelled grade 1 min. | 0.193 | mm | |
| Enamelled grade 1 max. | 0.204 | mm | |
| Enamelled grade 2 min. | 0.205 | mm | |
| Enamelled grade 2 max. | 0.217 | mm | |
| Conductor nominal Ø | 0.190 | mm | |
| Conductor cross section | 0.028 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.077 | kg/km | |
| Copper | Resistance min. | 0.5794 | Ω/m |
| Resistance max. | 0.6278 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.253 | kg/km | |
| Ø | Conductor min. | 0.187 | mm |
| Conductor max. | 0.193 | mm | |
| Enamelled grade 1 min. | 0.204 | mm | |
| Enamelled grade 1 max. | 0.216 | mm | |
| Enamelled grade 2 min. | 0.217 | mm | |
| Enamelled grade 2 max. | 0.228 | mm | |
| Conductor nominal Ø | 0.200 | mm | |
| Conductor cross section | 0.031 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.085 | kg/km | |
| Copper | Resistance min. | 0.5237 | Ω/m |
| Resistance max. | 0.5657 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.280 | kg/km | |
| Ø | Conductor min. | 0.197 | mm |
| Conductor max. | 0.203 | mm | |
| Enamelled grade 1 min. | 0.214 | mm | |
| Enamelled grade 1 max. | 0.226 | mm | |
| Enamelled grade 2 min. | 0.227 | mm | |
| Enamelled grade 2 max. | 0.239 | mm | |
| Conductor nominal Ø | 0.212 | mm | |
| Conductor cross section | 0.035 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.095 | kg/km | |
| Copper | Resistance min. | 0.4669 | Ω/m |
| Resistance max. | 0.5026 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.315 | kg/km | |
| Ø | Conductor min. | 0.209 | mm |
| Conductor max. | 0.215 | mm | |
| Enamelled grade 1 min. | 0.227 | mm | |
| Enamelled grade 1 max. | 0.240 | mm | |
| Enamelled grade 2 min. | 0.241 | mm | |
| Enamelled grade 2 max. | 0.254 | mm | |
| Conductor nominal Ø | 0.224 | mm | |
| Conductor cross section | 0.039 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.106 | kg/km | |
| Copper | Resistance min. | 0.4188 | Ω/m |
| Resistance max. | 0.4495 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.352 | kg/km | |
| Ø | Conductor min. | 0.221 | mm |
| Conductor max. | 0.227 | mm | |
| Enamelled grade 1 min. | 0.239 | mm | |
| Enamelled grade 1 max. | 0.252 | mm | |
| Enamelled grade 2 min. | 0.253 | mm | |
| Enamelled grade 2 max. | 0.266 | mm | |
| Conductor nominal Ø | 0.236 | mm | |
| Conductor cross section | 0.044 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.118 | kg/km | |
| Copper | Resistance min. | 0.3747 | Ω/m |
| Resistance max. | 0.4079 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.390 | kg/km | |
| Ø | Conductor min. | 0.232 | mm |
| Conductor max. | 0.240 | mm | |
| Enamelled grade 1 min. | 0.253 | mm | |
| Enamelled grade 1 max. | 0.267 | mm | |
| Enamelled grade 2 min. | 0.268 | mm | |
| Enamelled grade 2 max. | 0.283 | mm | |
| Conductor nominal Ø | 0.250 | mm | |
| Conductor cross section | 0.049 | mm² | |
| Aluminium | Resistance min. | 0.5452 | Ω/m |
| Resistance max. | 0.5927 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.133 | kg/km | |
| Copper | Resistance min. | 0.3345 | Ω/m |
| Resistance max. | 0.3628 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.438 | kg/km | |
| Ø | Conductor min. | 0.246 | mm |
| Conductor max. | 0.254 | mm | |
| Enamelled grade 1 min. | 0.267 | mm | |
| Enamelled grade 1 max. | 0.281 | mm | |
| Enamelled grade 2 min. | 0.282 | mm | |
| Enamelled grade 2 max. | 0.297 | mm | |
| Conductor nominal Ø | 0.265 | mm | |
| Conductor cross section | 0.055 | mm² | |
| Aluminium | Resistance min. | 0.4861 | Ω/m |
| Resistance max. | 0.5265 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.149 | kg/km | |
| Copper | Resistance min. | 0.2982 | Ω/m |
| Resistance max. | 0.3223 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.492 | kg/km | |
| Ø | Conductor min. | 0.261 | mm |
| Conductor max. | 0.269 | mm | |
| Enamelled grade 1 min. | 0.283 | mm | |
| Enamelled grade 1 max. | 0.297 | mm | |
| Enamelled grade 2 min. | 0.298 | mm | |
| Enamelled grade 2 max. | 0.314 | mm | |
| Conductor nominal Ø | 0.280 | mm | |
| Conductor cross section | 0.062 | mm² | |
| Aluminium | Resistance min. | 0.4361 | Ω/m |
| Resistance max. | 0.4708 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.166 | kg/km | |
| Copper | Resistance min. | 0.2676 | Ω/m |
| Resistance max. | 0.2882 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.549 | kg/km | |
| Ø | Conductor min. | 0.276 | mm |
| Conductor max. | 0.284 | mm | |
| Enamelled grade 1 min. | 0.298 | mm | |
| Enamelled grade 1 max. | 0.312 | mm | |
| Enamelled grade 2 min. | 0.313 | mm | |
| Enamelled grade 2 max. | 0.329 | mm | |
| Conductor nominal Ø | 0.300 | mm | |
| Conductor cross section | 0.071 | mm² | |
| Aluminium | Resistance min. | 0.3806 | Ω/m |
| Resistance max. | 0.4094 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.191 | kg/km | |
| Copper | Resistance min. | 0.2335 | Ω/m |
| Resistance max. | 0.2506 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.631 | kg/km | |
| Ø | Conductor min. | 0.296 | mm |
| Conductor max. | 0.304 | mm | |
| Enamelled grade 1 min. | 0.319 | mm | |
| Enamelled grade 1 max. | 0.334 | mm | |
| Enamelled grade 2 min. | 0.335 | mm | |
| Enamelled grade 2 max. | 0.352 | mm | |
| Conductor nominal Ø | 0.315 | mm | |
| Conductor cross section | 0.078 | mm² | |
| Aluminium | Resistance min. | 0.3456 | Ω/m |
| Resistance max. | 0.3708 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.210 | kg/km | |
| Copper | Resistance min. | 0.2121 | Ω/m |
| Resistance max. | 0.2270 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.695 | kg/km | |
| Ø | Conductor min. | 0.311 | mm |
| Conductor max. | 0.319 | mm | |
| Enamelled grade 1 min. | 0.334 | mm | |
| Enamelled grade 1 max. | 0.349 | mm | |
| Enamelled grade 2 min. | 0.350 | mm | |
| Enamelled grade 2 max. | 0.367 | mm | |
| Conductor nominal Ø | 0.335 | mm | |
| Conductor cross section | 0.088 | mm² | |
| Aluminium | Resistance min. | 0.3061 | Ω/m |
| Resistance max. | 0.3274 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.238 | kg/km | |
| Copper | Resistance min. | 0.1878 | Ω/m |
| Resistance max. | 0.2004 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.786 | kg/km | |
| Ø | Conductor min. | 0.331 | mm |
| Conductor max. | 0.339 | mm | |
| Enamelled grade 1 min. | 0.355 | mm | |
| Enamelled grade 1 max. | 0.372 | mm | |
| Enamelled grade 2 min. | 0.373 | mm | |
| Enamelled grade 2 max. | 0.391 | mm | |
| Conductor nominal Ø | 0.355 | mm | |
| Conductor cross section | 0.099 | mm² | |
| Aluminium | Resistance min. | 0.2729 | Ω/m |
| Resistance max. | 0.2911 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.267 | kg/km | |
| Copper | Resistance min. | 0.1674 | Ω/m |
| Resistance max. | 0.1782 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.883 | kg/km | |
| Ø | Conductor min. | 0.351 | mm |
| Conductor max. | 0.359 | mm | |
| Enamelled grade 1 min. | 0.375 | mm | |
| Enamelled grade 1 max. | 0.392 | mm | |
| Enamelled grade 2 min. | 0.393 | mm | |
| Enamelled grade 2 max. | 0.411 | mm | |
| Conductor nominal Ø | 0.375 | mm | |
| Conductor cross section | 0.110 | mm² | |
| Aluminium | Resistance min. | 0.2436 | Ω/m |
| Resistance max. | 0.2620 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.298 | kg/km | |
| Copper | Resistance min. | 0.1495 | Ω/m |
| Resistance max. | 0.1604 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.985 | kg/km | |
| Ø | Conductor min. | 0.370 | mm |
| Conductor max. | 0.380 | mm | |
| Enamelled grade 1 min. | 0.396 | mm | |
| Enamelled grade 1 max. | 0.414 | mm | |
| Enamelled grade 2 min. | 0.415 | mm | |
| Enamelled grade 2 max. | 0.434 | mm | |
| Conductor nominal Ø | 0.400 | mm | |
| Conductor cross section | 0.126 | mm² | |
| Aluminium | Resistance min. | 0.2144 | Ω/m |
| Resistance max. | 0.2299 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.339 | kg/km | |
| Copper | Resistance min. | 0.1316 | Ω/m |
| Resistance max. | 0.1407 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.121 | kg/km | |
| Ø | Conductor min. | 0.395 | mm |
| Conductor max. | 0.405 | mm | |
| Enamelled grade 1 min. | 0.421 | mm | |
| Enamelled grade 1 max. | 0.439 | mm | |
| Enamelled grade 2 min. | 0.440 | mm | |
| Enamelled grade 2 max. | 0.459 | mm | |
| Conductor nominal Ø | 0.425 | mm | |
| Conductor cross section | 0.142 | mm² | |
| Aluminium | Resistance min. | 0.1902 | Ω/m |
| Resistance max. | 0.2033 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.383 | kg/km | |
| Copper | Resistance min. | 0.1167 | Ω/m |
| Resistance max. | 0.1245 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.265 | kg/km | |
| Ø | Conductor min. | 0.420 | mm |
| Conductor max. | 0.430 | mm | |
| Enamelled grade 1 min. | 0.447 | mm | |
| Enamelled grade 1 max. | 0.466 | mm | |
| Enamelled grade 2 min. | 0.467 | mm | |
| Enamelled grade 2 max. | 0.488 | mm | |
| Conductor nominal Ø | 0.450 | mm | |
| Conductor cross section | 0.159 | mm² | |
| Aluminium | Resistance min. | 0.1699 | Ω/m |
| Resistance max. | 0.1811 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.429 | kg/km | |
| Copper | Resistance min. | 0.1042 | Ω/m |
| Resistance max. | 0.1109 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.419 | kg/km | |
| Ø | Conductor min. | 0.445 | mm |
| Conductor max. | 0.455 | mm | |
| Enamelled grade 1 min. | 0.472 | mm | |
| Enamelled grade 1 max. | 0.491 | mm | |
| Enamelled grade 2 min. | 0.492 | mm | |
| Enamelled grade 2 max. | 0.513 | mm | |
| Conductor nominal Ø | 0.475 | mm | |
| Conductor cross section | 0.177 | mm² | |
| Aluminium | Resistance min. | 0.1527 | Ω/m |
| Resistance max. | 0.1624 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.478 | kg/km | |
| Copper | Resistance min. | 0.0937 | Ω/m |
| Resistance max. | 0.0994 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.581 | kg/km | |
| Ø | Conductor min. | 0.470 | mm |
| Conductor max. | 0.480 | mm | |
| Enamelled grade 1 min. | 0.499 | mm | |
| Enamelled grade 1 max. | 0.519 | mm | |
| Enamelled grade 2 min. | 0.520 | mm | |
| Enamelled grade 2 max. | 0.541 | mm | |
| Conductor nominal Ø | 0.500 | mm | |
| Conductor cross section | 0.196 | mm² | |
| Aluminium | Resistance min. | 0.1379 | Ω/m |
| Resistance max. | 0.1464 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.530 | kg/km | |
| Copper | Resistance min. | 0.0846 | Ω/m |
| Resistance max. | 0.0896 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.751 | kg/km | |
| Ø | Conductor min. | 0.495 | mm |
| Conductor max. | 0.505 | mm | |
| Enamelled grade 1 min. | 0.524 | mm | |
| Enamelled grade 1 max. | 0.544 | mm | |
| Enamelled grade 2 min. | 0.545 | mm | |
| Enamelled grade 2 max. | 0.566 | mm | |
| Conductor nominal Ø | 0.530 | mm | |
| Conductor cross section | 0.221 | mm² | |
| Aluminium | Resistance min. | 0.1224 | Ω/m |
| Resistance max. | 0.1306 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.596 | kg/km | |
| Copper | Resistance min. | 0.0751 | Ω/m |
| Resistance max. | 0.0800 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.968 | kg/km | |
| Ø | Conductor min. | 0.524 | mm |
| Conductor max. | 0.536 | mm | |
| Enamelled grade 1 min. | 0.555 | mm | |
| Enamelled grade 1 max. | 0.576 | mm | |
| Enamelled grade 2 min. | 0.577 | mm | |
| Enamelled grade 2 max. | 0.600 | mm | |
| Conductor nominal Ø | 0.560 | mm | |
| Conductor cross section | 0.246 | mm² | |
| Aluminium | Resistance min. | 0.1098 | Ω/m |
| Resistance max. | 0.1169 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.665 | kg/km | |
| Copper | Resistance min. | 0.0674 | Ω/m |
| Resistance max. | 0.0715 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 2.197 | kg/km | |
| Ø | Conductor min. | 0.554 | mm |
| Conductor max. | 0.566 | mm | |
| Enamelled grade 1 min. | 0.585 | mm | |
| Enamelled grade 1 max. | 0.606 | mm | |
| Enamelled grade 2 min. | 0.607 | mm | |
| Enamelled grade 2 max. | 0.630 | mm | |
| Conductor nominal Ø | 0.600 | mm | |
| Conductor cross section | 0.283 | mm² | |
| Aluminium | Resistance min. | 0.0958 | Ω/m |
| Resistance max. | 0.1017 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.763 | kg/km | |
| Copper | Resistance min. | 0.0588 | Ω/m |
| Resistance max. | 0.0622 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 2.522 | kg/km | |
| Ø | Conductor min. | 0.594 | mm |
| Conductor max. | 0.606 | mm | |
| Enamelled grade 1 min. | 0.627 | mm | |
| Enamelled grade 1 max. | 0.649 | mm | |
| Enamelled grade 2 min. | 0.650 | mm | |
| Enamelled grade 2 max. | 0.674 | mm | |
| Conductor nominal Ø | 0.630 | mm | |
| Conductor cross section | 0.312 | mm² | |
| Aluminium | Resistance min. | 0.0870 | Ω/m |
| Resistance max. | 0.0921 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.842 | kg/km | |
| Copper | Resistance min. | 0.0534 | Ω/m |
| Resistance max. | 0.0564 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 2.781 | kg/km | |
| Ø | Conductor min. | 0.624 | mm |
| Conductor max. | 0.636 | mm | |
| Enamelled grade 1 min. | 0.657 | mm | |
| Enamelled grade 1 max. | 0.679 | mm | |
| Enamelled grade 2 min. | 0.680 | mm | |
| Enamelled grade 2 max. | 0.704 | mm | |
| Conductor nominal Ø | 0.670 | mm | |
| Conductor cross section | 0.353 | mm² | |
| Aluminium | Resistance min. | 0.0767 | Ω/m |
| Resistance max. | 0.0816 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.952 | kg/km | |
| Copper | Resistance min. | 0.0471 | Ω/m |
| Resistance max. | 0.0499 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 3.145 | kg/km | |
| Ø | Conductor min. | 0.663 | mm |
| Conductor max. | 0.677 | mm | |
| Enamelled grade 1 min. | 0.698 | mm | |
| Enamelled grade 1 max. | 0.722 | mm | |
| Enamelled grade 2 min. | 0.723 | mm | |
| Enamelled grade 2 max. | 0.749 | mm | |
| Conductor nominal Ø | 0.710 | mm | |
| Conductor cross section | 0.396 | mm² | |
| Aluminium | Resistance min. | 0.0684 | Ω/m |
| Resistance max. | 0.0726 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.069 | kg/km | |
| Copper | Resistance min. | 0.0420 | Ω/m |
| Resistance max. | 0.0444 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 3.532 | kg/km | |
| Ø | Conductor min. | 0.703 | mm |
| Conductor max. | 0.717 | mm | |
| Enamelled grade 1 min. | 0.738 | mm | |
| Enamelled grade 1 max. | 0.762 | mm | |
| Enamelled grade 2 min. | 0.763 | mm | |
| Enamelled grade 2 max. | 0.789 | mm | |
| Conductor nominal Ø | 0.750 | mm | |
| Conductor cross section | 0.442 | mm² | |
| Aluminium | Resistance min. | 0.0612 | Ω/m |
| Resistance max. | 0.0651 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.193 | kg/km | |
| Copper | Resistance min. | 0.0376 | Ω/m |
| Resistance max. | 0.0399 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 3.941 | kg/km | |
| Ø | Conductor min. | 0.742 | mm |
| Conductor max. | 0.758 | mm | |
| Enamelled grade 1 min. | 0.780 | mm | |
| Enamelled grade 1 max. | 0.805 | mm | |
| Enamelled grade 2 min. | 0.806 | mm | |
| Enamelled grade 2 max. | 0.834 | mm | |
| Conductor nominal Ø | 0.800 | mm | |
| Conductor cross section | 0.503 | mm² | |
| Aluminium | Resistance min. | 0.0539 | Ω/m |
| Resistance max. | 0.0572 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.357 | kg/km | |
| Copper | Resistance min. | 0.0331 | Ω/m |
| Resistance max. | 0.0350 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 4.484 | kg/km | |
| Ø | Conductor min. | 0.792 | mm |
| Conductor max. | 0.808 | mm | |
| Enamelled grade 1 min. | 0.830 | mm | |
| Enamelled grade 1 max. | 0.855 | mm | |
| Enamelled grade 2 min. | 0.856 | mm | |
| Enamelled grade 2 max. | 0.884 | mm | |
| Conductor nominal Ø | 0.850 | mm | |
| Conductor cross section | 0.567 | mm² | |
| Aluminium | Resistance min. | 0.0477 | Ω/m |
| Resistance max. | 0.0507 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.532 | kg/km | |
| Copper | Resistance min. | 0.0292 | Ω/m |
| Resistance max. | 0.0310 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 5.062 | kg/km | |
| Ø | Conductor min. | 0.841 | mm |
| Conductor max. | 0.859 | mm | |
| Enamelled grade 1 min. | 0.882 | mm | |
| Enamelled grade 1 max. | 0.909 | mm | |
| Enamelled grade 2 min. | 0.910 | mm | |
| Enamelled grade 2 max. | 0.939 | mm | |
| Conductor nominal Ø | 0.900 | mm | |
| Conductor cross section | 0.636 | mm² | |
| Aluminium | Resistance min. | 0.0426 | Ω/m |
| Resistance max. | 0.0452 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.718 | kg/km | |
| Copper | Resistance min. | 0.0261 | Ω/m |
| Resistance max. | 0.0277 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 5.675 | kg/km | |
| Ø | Conductor min. | 0.891 | mm |
| Conductor max. | 0.909 | mm | |
| Enamelled grade 1 min. | 0.932 | mm | |
| Enamelled grade 1 max. | 0.959 | mm | |
| Enamelled grade 2 min. | 0.960 | mm | |
| Enamelled grade 2 max. | 0.989 | mm | |
| Conductor nominal Ø | 0.950 | mm | |
| Conductor cross section | 0.709 | mm² | |
| Aluminium | Resistance min. | 0.0382 | Ω/m |
| Resistance max. | 0.0406 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.914 | kg/km | |
| Copper | Resistance min. | 0.0234 | Ω/m |
| Resistance max. | 0.0248 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 6.323 | kg/km | |
| Ø | Conductor min. | 0.940 | mm |
| Conductor max. | 0.960 | mm | |
| Enamelled grade 1 min. | 0.984 | mm | |
| Enamelled grade 1 max. | 1.012 | mm | |
| Enamelled grade 2 min. | 1.013 | mm | |
| Enamelled grade 2 max. | 1.044 | mm | |
| Conductor nominal Ø | 1.000 | mm | |
| Conductor cross section | 0.785 | mm² | |
| Aluminium | Resistance min. | 0.0345 | Ω/m |
| Resistance max. | 0.0366 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 2.121 | kg/km | |
| Copper | Resistance min. | 0.0212 | Ω/m |
| Resistance max. | 0.0224 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 7.006 | kg/km | |
| Ø | Conductor min. | 0.990 | mm |
| Conductor max. | 1.010 | mm | |
| Enamelled grade 1 min. | 1.034 | mm | |
| Enamelled grade 1 max. | 1.062 | mm | |
| Enamelled grade 2 min. | 1.063 | mm | |
| Enamelled grade 2 max. | 1.094 | mm | |
| Conductor nominal Ø | 1.060 | mm | |
| Conductor cross section | 0.882 | mm² | |
| Aluminium | Resistance min. | 0.0307 | Ω/m |
| Resistance max. | 0.0326 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 2.383 | kg/km | |
| Copper | Resistance min. | 0.0188 | Ω/m |
| Resistance max. | 0.0199 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 7.872 | kg/km | |
| Ø | Conductor min. | 1.049 | mm |
| Conductor max. | 1.071 | mm | |
| Enamelled grade 1 min. | 1.094 | mm | |
| Enamelled grade 1 max. | 1.124 | mm | |
| Enamelled grade 2 min. | 1.125 | mm | |
| Enamelled grade 2 max. | 1.157 | mm | |
| Conductor nominal Ø | 1.120 | mm | |
| Conductor cross section | 0.985 | mm² | |
| Aluminium | Resistance min. | 0.0275 | Ω/m |
| Resistance max. | 0.0292 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 2.660 | kg/km | |
| Copper | Resistance min. | 0.0169 | Ω/m |
| Resistance max. | 0.0178 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 8.788 | kg/km | |
| Ø | Conductor min. | 1.109 | mm |
| Conductor max. | 1.131 | mm | |
| Enamelled grade 1 min. | 1.154 | mm | |
| Enamelled grade 1 max. | 1.184 | mm | |
| Enamelled grade 2 min. | 1.185 | mm | |
| Enamelled grade 2 max. | 1.217 | mm | |
| Conductor nominal Ø | 1.180 | mm | |
| Conductor cross section | 1.094 | mm² | |
| Aluminium | Resistance min. | 0.0248 | Ω/m |
| Resistance max. | 0.0263 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 2.953 | kg/km | |
| Copper | Resistance min. | 0.0152 | Ω/m |
| Resistance max. | 0.0161 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 9.755 | kg/km | |
| Ø | Conductor min. | 1.168 | mm |
| Conductor max. | 1.192 | mm | |
| Enamelled grade 1 min. | 1.215 | mm | |
| Enamelled grade 1 max. | 1.246 | mm | |
| Enamelled grade 2 min. | 1.247 | mm | |
| Enamelled grade 2 max. | 1.279 | mm | |
| Conductor nominal Ø | 1.250 | mm | |
| Conductor cross section | 1.227 | mm² | |
| Aluminium | Resistance min. | 0.0220 | Ω/m |
| Resistance max. | 0.0234 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 3.313 | kg/km | |
| Copper | Resistance min. | 0.0135 | Ω/m |
| Resistance max. | 0.0143 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 10.946 | kg/km | |
| Ø | Conductor min. | 1.237 | mm |
| Conductor max. | 1.263 | mm | |
| Enamelled grade 1 min. | 1.285 | mm | |
| Enamelled grade 1 max. | 1.316 | mm | |
| Enamelled grade 2 min. | 1.317 | mm | |
| Enamelled grade 2 max. | 1.349 | mm | |
| Conductor nominal Ø | 1.320 | mm | |
| Conductor cross section | 1.368 | mm² | |
| Aluminium | Resistance min. | 0.0198 | Ω/m |
| Resistance max. | 0.0210 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 3.695 | kg/km | |
| Copper | Resistance min. | 0.0121 | Ω/m |
| Resistance max. | 0.0129 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 12.207 | kg/km | |
| Ø | Conductor min. | 1.307 | mm |
| Conductor max. | 1.333 | mm | |
| Enamelled grade 1 min. | 1.356 | mm | |
| Enamelled grade 1 max. | 1.388 | mm | |
| Enamelled grade 2 min. | 1.389 | mm | |
| Enamelled grade 2 max. | 1.422 | mm | |
| Conductor nominal Ø | 1.400 | mm | |
| Conductor cross section | 1.539 | mm² | |
| Aluminium | Resistance min. | 0.0176 | Ω/m |
| Resistance max. | 0.0187 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 4.156 | kg/km | |
| Copper | Resistance min. | 0.0108 | Ω/m |
| Resistance max. | 0.0114 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 13.731 | kg/km | |
| Ø | Conductor min. | 1.386 | mm |
| Conductor max. | 1.414 | mm | |
| Enamelled grade 1 min. | 1.436 | mm | |
| Enamelled grade 1 max. | 1.468 | mm | |
| Enamelled grade 2 min. | 1.469 | mm | |
| Enamelled grade 2 max. | 1.502 | mm | |
| Conductor nominal Ø | 1.500 | mm | |
| Conductor cross section | 1.767 | mm² | |
| Aluminium | Resistance min. | 0.0153 | Ω/m |
| Resistance max. | 0.0163 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 4.771 | kg/km | |
| Copper | Resistance min. | 0.0094 | Ω/m |
| Resistance max. | 0.0100 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 15.763 | kg/km | |
| Ø | Conductor min. | 1.485 | mm |
| Conductor max. | 1.515 | mm | |
| Enamelled grade 1 min. | 1.538 | mm | |
| Enamelled grade 1 max. | 1.570 | mm | |
| Enamelled grade 2 min. | 1.571 | mm | |
| Enamelled grade 2 max. | 1.606 | mm | |
| Conductor nominal Ø | 1.600 | mm | |
| Conductor cross section | 2.011 | mm² | |
| Aluminium | Resistance min. | 0.0135 | Ω/m |
| Resistance max. | 0.0143 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 5.429 | kg/km | |
| Copper | Resistance min. | 0.0083 | Ω/m |
| Resistance max. | 0.0087 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 17.935 | kg/km | |
| Ø | Conductor min. | 1.584 | mm |
| Conductor max. | 1.616 | mm | |
| Enamelled grade 1 min. | 1.638 | mm | |
| Enamelled grade 1 max. | 1.670 | mm | |
| Enamelled grade 2 min. | 1.671 | mm | |
| Enamelled grade 2 max. | 1.706 | mm | |
| Conductor nominal Ø | 1.700 | mm | |
| Conductor cross section | 2.270 | mm² | |
| Aluminium | Resistance min. | 0.0119 | Ω/m |
| Resistance max. | 0.0127 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 6.128 | kg/km | |
| Copper | Resistance min. | 0.0073 | Ω/m |
| Resistance max. | 0.0078 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 20.247 | kg/km | |
| Ø | Conductor min. | 1.683 | mm |
| Conductor max. | 1.717 | mm | |
| Enamelled grade 1 min. | 1.739 | mm | |
| Enamelled grade 1 max. | 1.772 | mm | |
| Enamelled grade 2 min. | 1.773 | mm | |
| Enamelled grade 2 max. | 1.809 | mm | |
| Conductor nominal Ø | 1.800 | mm | |
| Conductor cross section | 2.545 | mm² | |
| Aluminium | Resistance min. | 0.0106 | Ω/m |
| Resistance max. | 0.0113 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 6.871 | kg/km | |
| Copper | Resistance min. | 0.0065 | Ω/m |
| Resistance max. | 0.0069 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 22.699 | kg/km | |
| Ø | Conductor min. | 1.782 | mm |
| Conductor max. | 1.818 | mm | |
| Enamelled grade 1 min. | 1.839 | mm | |
| Enamelled grade 1 max. | 1.872 | mm | |
| Enamelled grade 2 min. | 1.873 | mm | |
| Enamelled grade 2 max. | 1.909 | mm | |
| Conductor nominal Ø | 1.900 | mm | |
| Conductor cross section | 2.835 | mm² | |
| Aluminium | Resistance min. | 0.0096 | Ω/m |
| Resistance max. | 0.0101 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 7.655 | kg/km | |
| Copper | Resistance min. | 0.0059 | Ω/m |
| Resistance max. | 0.0062 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 25.291 | kg/km | |
| Ø | Conductor min. | 1.881 | mm |
| Conductor max. | 1.919 | mm | |
| Enamelled grade 1 min. | 1.940 | mm | |
| Enamelled grade 1 max. | 1.974 | mm | |
| Enamelled grade 2 min. | 1.975 | mm | |
| Enamelled grade 2 max. | 2.012 | mm | |
| Conductor nominal Ø | 2.000 | mm | |
| Conductor cross section | 3.142 | mm² | |
| Aluminium | Resistance min. | 0.0086 | Ω/m |
| Resistance max. | 0.0091 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 8.482 | kg/km | |
| Copper | Resistance min. | 0.0053 | Ω/m |
| Resistance max. | 0.0056 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 28.023 | kg/km | |
| Ø | Conductor min. | 1.980 | mm |
| Conductor max. | 2.020 | mm | |
| Enamelled grade 1 min. | 2.040 | mm | |
| Enamelled grade 1 max. | 2.074 | mm | |
| Enamelled grade 2 min. | 2.075 | mm | |
| Enamelled grade 2 max. | 2.112 | mm | |
| Conductor nominal Ø | 2.120 | mm | |
| Conductor cross section | 3.530 | mm² | |
| Aluminium | Resistance min. | 0.0077 | Ω/m |
| Resistance max. | 0.0081 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 9.531 | kg/km | |
| Copper | Resistance min. | 0.0047 | Ω/m |
| Resistance max. | 0.0050 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 31.487 | kg/km | |
| Ø | Conductor min. | 2.099 | mm |
| Conductor max. | 2.141 | mm | |
| Enamelled grade 1 min. | 2.161 | mm | |
| Enamelled grade 1 max. | 2.196 | mm | |
| Enamelled grade 2 min. | 2.197 | mm | |
| Enamelled grade 2 max. | 2.235 | mm | |
| Conductor nominal Ø | 2.240 | mm | |
| Conductor cross section | 3.941 | mm² | |
| Aluminium | Resistance min. | 0.0069 | Ω/m |
| Resistance max. | 0.0073 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 10.640 | kg/km | |
| Copper | Resistance min. | 0.0042 | Ω/m |
| Resistance max. | 0.0045 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 35.152 | kg/km | |
| Ø | Conductor min. | 2.218 | mm |
| Conductor max. | 2.262 | mm | |
| Enamelled grade 1 min. | 2.281 | mm | |
| Enamelled grade 1 max. | 2.316 | mm | |
| Enamelled grade 2 min. | 2.317 | mm | |
| Enamelled grade 2 max. | 2.355 | mm | |
| Conductor nominal Ø | 2.360 | mm | |
| Conductor cross section | 4.374 | mm² | |
| Aluminium | Resistance min. | 0.0062 | Ω/m |
| Resistance max. | 0.0066 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 11.811 | kg/km | |
| Copper | Resistance min. | 0.0038 | Ω/m |
| Resistance max. | 0.0040 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 39.019 | kg/km | |
| Ø | Conductor min. | 2.336 | mm |
| Conductor max. | 2.384 | mm | |
| Enamelled grade 1 min. | 2.402 | mm | |
| Enamelled grade 1 max. | 2.438 | mm | |
| Enamelled grade 2 min. | 2.439 | mm | |
| Enamelled grade 2 max. | 2.478 | mm | |
| Conductor nominal Ø | 2.500 | mm | |
| Conductor cross section | 4.909 | mm² | |
| Aluminium | Resistance min. | 0.0055 | Ω/m |
| Resistance max. | 0.0059 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 13.254 | kg/km | |
| Copper | Resistance min. | 0.0034 | Ω/m |
| Resistance max. | 0.0036 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 43.786 | kg/km | |
| Ø | Conductor min. | 2.475 | mm |
| Conductor max. | 2.525 | mm | |
| Enamelled grade 1 min. | 2.542 | mm | |
| Enamelled grade 1 max. | 2.578 | mm | |
| Enamelled grade 2 min. | 2.579 | mm | |
| Enamelled grade 2 max. | 2.618 | mm | |
| Conductor nominal Ø | 2.650 | mm | |
| Conductor cross section | 5.515 | mm² | |
| Aluminium | Resistance min. | 0.0049 | Ω/m |
| Resistance max. | 0.0052 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 14.892 | kg/km | |
| Copper | Resistance min. | 0.0030 | Ω/m |
| Resistance max. | 0.0032 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 49.198 | kg/km | |
| Ø | Conductor min. | 2.623 | mm |
| Conductor max. | 2.677 | mm | |
| Enamelled grade 1 min. | 2.693 | mm | |
| Enamelled grade 1 max. | 2.730 | mm | |
| Enamelled grade 2 min. | 2.731 | mm | |
| Enamelled grade 2 max. | 2.772 | mm | |
| Conductor nominal Ø | 2.800 | mm | |
| Conductor cross section | 6.158 | mm² | |
| Aluminium | Resistance min. | 0.0044 | Ω/m |
| Resistance max. | 0.0047 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 16.625 | kg/km | |
| Copper | Resistance min. | 0.0027 | Ω/m |
| Resistance max. | 0.0029 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 54.925 | kg/km | |
| Ø | Conductor min. | 2.772 | mm |
| Conductor max. | 2.828 | mm | |
| Enamelled grade 1 min. | 2.843 | mm | |
| Enamelled grade 1 max. | 2.880 | mm | |
| Enamelled grade 2 min. | 2.881 | mm | |
| Enamelled grade 2 max. | 2.922 | mm | |
| Conductor nominal Ø | 3.000 | mm | |
| Conductor cross section | 7.069 | mm² | |
| Aluminium | Resistance min. | 0.0038 | Ω/m |
| Resistance max. | 0.0041 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 19.085 | kg/km | |
| Copper | Resistance min. | 0.0024 | Ω/m |
| Resistance max. | 0.0025 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 63.052 | kg/km | |
| Ø | Conductor min. | 2.970 | mm |
| Conductor max. | 3.030 | mm | |
| Enamelled grade 1 min. | 3.045 | mm | |
| Enamelled grade 1 max. | 3.083 | mm | |
| Enamelled grade 2 min. | 3.084 | mm | |
| Enamelled grade 2 max. | 3.126 | mm | |
| Conductor nominal Ø | 3.150 | mm | |
| Conductor cross section | 7.793 | mm² | |
| Aluminium | Resistance min. | 0.0035 | Ω/m |
| Resistance max. | 0.0037 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 21.041 | kg/km | |
| Copper | Resistance min. | 0.0021 | Ω/m |
| Resistance max. | 0.0023 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 69.515 | kg/km | |
| Ø | Conductor min. | 3.118 | mm |
| Conductor max. | 3.182 | mm | |
| Enamelled grade 1 min. | 3.195 | mm | |
| Enamelled grade 1 max. | 3.233 | mm | |
| Enamelled grade 2 min. | 3.234 | mm | |
| Enamelled grade 2 max. | 3.276 | mm | |
| Conductor nominal Ø | 3.350 | mm | |
| Conductor cross section | 8.814 | mm² | |
| Aluminium | Resistance min. | 0.0031 | Ω/m |
| Resistance max. | 0.0033 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 23.798 | kg/km | |
| Copper | Resistance min. | 0.0019 | Ω/m |
| Resistance max. | 0.0020 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 78.622 | kg/km | |
| Ø | Conductor min. | 3.316 | mm |
| Conductor max. | 3.384 | mm | |
| Enamelled grade 1 min. | 3.396 | mm | |
| Enamelled grade 1 max. | 3.435 | mm | |
| Enamelled grade 2 min. | 3.436 | mm | |
| Enamelled grade 2 max. | 3.479 | mm | |
| Conductor nominal Ø | 3.550 | mm | |
| Conductor cross section | 9.898 | mm² | |
| Aluminium | Resistance min. | 0.0027 | Ω/m |
| Resistance max. | 0.0029 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 26.725 | kg/km | |
| Copper | Resistance min. | 0.0017 | Ω/m |
| Resistance max. | 0.0018 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 88.290 | kg/km | |
| Ø | Conductor min. | 3.514 | mm |
| Conductor max. | 3.586 | mm | |
| Enamelled grade 1 min. | 3.596 | mm | |
| Enamelled grade 1 max. | 3.635 | mm | |
| Enamelled grade 2 min. | 3.636 | mm | |
| Enamelled grade 2 max. | 3.679 | mm | |
| Conductor nominal Ø | 3.750 | mm | |
| Conductor cross section | 11.045 | mm² | |
| Aluminium | Resistance min. | 0.0025 | Ω/m |
| Resistance max. | 0.0026 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 29.821 | kg/km | |
| Copper | Resistance min. | 0.0015 | Ω/m |
| Resistance max. | 0.0016 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 98.518 | kg/km | |
| Ø | Conductor min. | 3.712 | mm |
| Conductor max. | 3.788 | mm | |
| Enamelled grade 1 min. | 3.797 | mm | |
| Enamelled grade 1 max. | 3.838 | mm | |
| Enamelled grade 2 min. | 3.839 | mm | |
| Enamelled grade 2 max. | 3.883 | mm | |
| Conductor nominal Ø | 4.000 | mm | |
| Conductor cross section | 12.566 | mm² | |
| Aluminium | Resistance min. | 0.0022 | Ω/m |
| Resistance max. | 0.0023 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 33.929 | kg/km | |
| Copper | Resistance min. | 0.0013 | Ω/m |
| Resistance max. | 0.0014 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 112.092 | kg/km | |
| Ø | Conductor min. | 3.960 | mm |
| Conductor max. | 4.040 | mm | |
| Enamelled grade 1 min. | 4.047 | mm | |
| Enamelled grade 1 max. | 4.088 | mm | |
| Enamelled grade 2 min. | 4.089 | mm | |
| Enamelled grade 2 max. | 4.133 | mm | |
| Conductor nominal Ø | 4.250 | mm | |
| Conductor cross section | 14.186 | mm² | |
| Aluminium | Resistance min. | 0.0019 | Ω/m |
| Resistance max. | 0.0020 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 38.303 | kg/km | |
| Copper | Resistance min. | 0.0012 | Ω/m |
| Resistance max. | 0.0012 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 126.541 | kg/km | |
| Ø | Conductor min. | 4.207 | mm |
| Conductor max. | 4.293 | mm | |
| Enamelled grade 1 min. | 4.299 | mm | |
| Enamelled grade 1 max. | 4.341 | mm | |
| Enamelled grade 2 min. | 4.342 | mm | |
| Enamelled grade 2 max. | 4.387 | mm | |
| Conductor nominal Ø | 4.500 | mm | |
| Conductor cross section | 15.904 | mm² | |
| Aluminium | Resistance min. | 0.0017 | Ω/m |
| Resistance max. | 0.0018 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 42.942 | kg/km | |
| Copper | Resistance min. | 0.0010 | Ω/m |
| Resistance max. | 0.0011 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 141.866 | kg/km | |
| Ø | Conductor min. | 4.455 | mm |
| Conductor max. | 4.545 | mm | |
| Enamelled grade 1 min. | 4.549 | mm | |
| Enamelled grade 1 max. | 4.591 | mm | |
| Enamelled grade 2 min. | 4.592 | mm | |
| Enamelled grade 2 max. | 4.637 | mm | |
| Conductor nominal Ø | 4.750 | mm | |
| Conductor cross section | 17.721 | mm² | |
| Aluminium | Resistance min. | 0.0015 | Ω/m |
| Resistance max. | 0.0016 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 47.845 | kg/km | |
| Copper | Resistance min. | 0.0009 | Ω/m |
| Resistance max. | 0.0010 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 158.067 | kg/km | |
| Ø | Conductor min. | 4.702 | mm |
| Conductor max. | 4.798 | mm | |
| Enamelled grade 1 min. | 4.800 | mm | |
| Enamelled grade 1 max. | 4.843 | mm | |
| Enamelled grade 2 min. | 4.844 | mm | |
| Enamelled grade 2 max. | 4.891 | mm | |
| Conductor nominal Ø | 5.000 | mm | |
| Conductor cross section | 19.635 | mm² | |
| Aluminium | Resistance min. | 0.0014 | Ω/m |
| Resistance max. | 0.0015 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 53.014 | kg/km | |
| Copper | Resistance min. | 0.0008 | Ω/m |
| Resistance max. | 0.0009 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 175.144 | kg/km | |
| Ø | Conductor min. | 4.950 | mm |
| Conductor max. | 5.050 | mm | |
| Enamelled grade 1 min. | 5.050 | mm | |
| Enamelled grade 1 max. | 5.093 | mm | |
| Enamelled grade 2 min. | 5.094 | mm | |
| Enamelled grade 2 max. | 5.141 | mm | |
Get in contact
Find out more about our high-quality enamelled wires and our quality standards. Contact us today for personalized advice and a non-binding quote.
Sales Team
+49-5281-988-0sales@sh-wire.de
