Breakthrough in round magnet wires for industrial applications

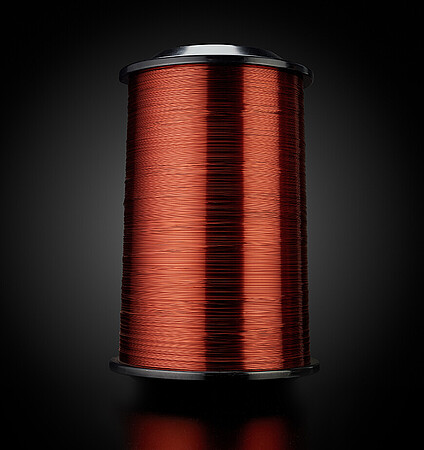

SHXLife^® 220 Round

SHXLife^® 220 Round is a completely new development from SHWire - based on the innovative SHXLife^® technology for an extended service life. The specially developed insulation solution is aimed at industrial electric motors that have to withstand extreme electrical and thermal loads in modern inverter applications.

The challenge

Industrial motors and drives powered by inverters are subject to high electrical and thermal stresses. These conditions place unique demands on magnet wires:

Voltage Fluctuations: Steep voltage pulses strain the insulation and trigger partial discharges, leading to insulation degradation over time.
High Frequencies: Pulse Width Modulation (PWM) results in constant stress cycles, increasing the likelihood of failure.
High Operating Temperatures: Power electronics and compact designs generate significant heat, requiring highly temperature-resistant insulation.
Extended Service Life: Industrial applications demand wires that can withstand electrical, thermal, and mechanical stress over many years.

Our solution

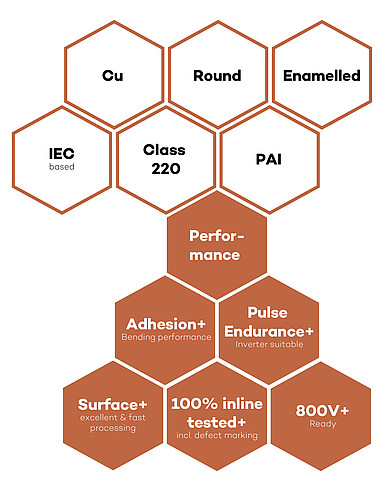

A new insulation concept for industrial round magnet wires with longer lifetime

SHXLife^® 220 Round sets new standards in terms of insulation performance and service life. The developed solution is based on a modified lacquer structure and offers clear advantages:

Partial discharge resistance

Ensures significantly longer lifetime under real-world high-voltage operating conditions

800V+ systems capable

Ideally suited for modern industrial and drive systems with elevated system voltage

Optimized slot fill factor

Thinner insulation allows for improved winding density and higher motor efficiency

100% inline tested

Highest quality and reliability thanks to fully automated production and testing processes

Thermal and mechanical robustness

Resistant to high operating temperatures and demanding mechanical loads

SHXLife^® 220 Round

Your benefits

Extended lifetime even under continuous partial discharge
Improved slot fill and winding efficiency
Better thermal management
Greater system stability and reduced downtime

Digital magnet wire slide rule

With the digital magnet wire slide rule we have brought the well-known and popular handy tool from the desk to the desktop. Simply enter the desired nominal wire diameter via the input field or use the slider. At a glance you will find useful information on enamelled copper and aluminium wires based on IEC 60317-0-1.

0.030 mm
0.040 mm
0.045 mm
0.050 mm
0.053 mm
0.056 mm
0.060 mm
0.063 mm
0.067 mm
0.071 mm
0.075 mm
0.080 mm
0.085 mm
0.090 mm
0.095 mm
0.100 mm
0.106 mm
0.112 mm
0.118 mm
0.125 mm
0.132 mm
0.140 mm
0.150 mm
0.160 mm
0.170 mm
0.180 mm
0.190 mm
0.200 mm
0.212 mm
0.224 mm
0.236 mm
0.250 mm
0.265 mm
0.280 mm
0.300 mm
0.315 mm
0.335 mm
0.355 mm
0.375 mm
0.400 mm
0.425 mm
0.450 mm
0.475 mm
0.500 mm
0.530 mm
0.560 mm
0.600 mm
0.630 mm
0.670 mm
0.710 mm
0.750 mm
0.800 mm
0.850 mm
0.900 mm
0.950 mm
1.000 mm
1.060 mm
1.120 mm
1.180 mm
1.250 mm
1.320 mm
1.400 mm
1.500 mm
1.600 mm
1.700 mm
1.800 mm
1.900 mm
2.000 mm
2.120 mm
2.240 mm
2.360 mm
2.500 mm
2.650 mm
2.800 mm
3.000 mm
3.150 mm
3.350 mm
3.550 mm
3.750 mm
4.000 mm
4.250 mm
4.500 mm
4.750 mm
5.000 mm

Conductor nominal Ø		0.030	mm
Conductor cross section		0.001	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.002	kg/km
Copper	Resistance min.	21.765	Ω/m
	Resistance max.	26.601	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.006	kg/km
Ø	Conductor min.	-	mm
	Conductor max.	-	mm
	Enamelled grade 1 min.	0.033	mm
	Enamelled grade 1 max.	0.037	mm
	Enamelled grade 2 min.	0.038	mm
	Enamelled grade 2 max.	0.041	mm

Conductor nominal Ø		0.040	mm
Conductor cross section		0.001	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.003	kg/km
Copper	Resistance min.	12.379	Ω/m
	Resistance max.	14.827	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.011	kg/km
Ø	Conductor min.	-	mm
	Conductor max.	-	mm
	Enamelled grade 1 min.	0.044	mm
	Enamelled grade 1 max.	0.049	mm
	Enamelled grade 2 min.	0.050	mm
	Enamelled grade 2 max.	0.054	mm

Conductor nominal Ø		0.045	mm
Conductor cross section		0.002	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.004	kg/km
Copper	Resistance min.	9.781	Ω/m
	Resistance max.	11.715	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.014	kg/km
Ø	Conductor min.	-	mm
	Conductor max.	-	mm
	Enamelled grade 1 min.	0.050	mm
	Enamelled grade 1 max.	0.055	mm
	Enamelled grade 2 min.	0.056	mm
	Enamelled grade 2 max.	0.061	mm

Conductor nominal Ø		0.050	mm
Conductor cross section		0.002	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.005	kg/km
Copper	Resistance min.	7.9224	Ω/m
	Resistance max.	9.4894	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.018	kg/km
Ø	Conductor min.	-	mm
	Conductor max.	-	mm
	Enamelled grade 1 min.	0.055	mm
	Enamelled grade 1 max.	0.060	mm
	Enamelled grade 2 min.	0.061	mm
	Enamelled grade 2 max.	0.066	mm

Conductor nominal Ø		0.053	mm
Conductor cross section		0.002	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.006	kg/km
Copper	Resistance min.	7.0509	Ω/m
	Resistance max.	8.4456	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.020	kg/km
Ø	Conductor min.	-	mm
	Conductor max.	-	mm
	Enamelled grade 1 min.	0.059	mm
	Enamelled grade 1 max.	0.064	mm
	Enamelled grade 2 min.	0.065	mm
	Enamelled grade 2 max.	0.070	mm

Conductor nominal Ø		0.056	mm
Conductor cross section		0.002	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.007	kg/km
Copper	Resistance min.	6.3157	Ω/m
	Resistance max.	7.5649	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.022	kg/km
Ø	Conductor min.	-	mm
	Conductor max.	-	mm
	Enamelled grade 1 min.	0.062	mm
	Enamelled grade 1 max.	0.067	mm
	Enamelled grade 2 min.	0.068	mm
	Enamelled grade 2 max.	0.074	mm

Conductor nominal Ø		0.060	mm
Conductor cross section		0.003	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.008	kg/km
Copper	Resistance min.	5.5017	Ω/m
	Resistance max.	6.5899	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.025	kg/km
Ø	Conductor min.	-	mm
	Conductor max.	-	mm
	Enamelled grade 1 min.	0.066	mm
	Enamelled grade 1 max.	0.072	mm
	Enamelled grade 2 min.	0.073	mm
	Enamelled grade 2 max.	0.079	mm

Conductor nominal Ø		0.063	mm
Conductor cross section		0.003	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.008	kg/km
Copper	Resistance min.	4.9902	Ω/m
	Resistance max.	5.9772	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.028	kg/km
Ø	Conductor min.	-	mm
	Conductor max.	-	mm
	Enamelled grade 1 min.	0.069	mm
	Enamelled grade 1 max.	0.076	mm
	Enamelled grade 2 min.	0.077	mm
	Enamelled grade 2 max.	0.083	mm

Conductor nominal Ø		0.067	mm
Conductor cross section		0.004	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.010	kg/km
Copper	Resistance min.	4.4121	Ω/m
	Resistance max.	5.2848	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.031	kg/km
Ø	Conductor min.	0.064	mm
	Conductor max.	0.070	mm
	Enamelled grade 1 min.	0.074	mm
	Enamelled grade 1 max.	0.080	mm
	Enamelled grade 2 min.	0.081	mm
	Enamelled grade 2 max.	0.088	mm

Conductor nominal Ø		0.071	mm
Conductor cross section		0.004	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.011	kg/km
Copper	Resistance min.	3.9290	Ω/m
	Resistance max.	4.7061	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.035	kg/km
Ø	Conductor min.	0.068	mm
	Conductor max.	0.074	mm
	Enamelled grade 1 min.	0.078	mm
	Enamelled grade 1 max.	0.084	mm
	Enamelled grade 2 min.	0.085	mm
	Enamelled grade 2 max.	0.091	mm

Conductor nominal Ø		0.075	mm
Conductor cross section		0.004	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.012	kg/km
Copper	Resistance min.	3.5471	Ω/m
	Resistance max.	4.2346	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.039	kg/km
Ø	Conductor min.	0.072	mm
	Conductor max.	0.078	mm
	Enamelled grade 1 min.	0.082	mm
	Enamelled grade 1 max.	0.089	mm
	Enamelled grade 2 min.	0.090	mm
	Enamelled grade 2 max.	0.095	mm

Conductor nominal Ø		0.080	mm
Conductor cross section		0.005	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.014	kg/km
Copper	Resistance min.	3.1326	Ω/m
	Resistance max.	3.7025	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.045	kg/km
Ø	Conductor min.	0.077	mm
	Conductor max.	0.083	mm
	Enamelled grade 1 min.	0.087	mm
	Enamelled grade 1 max.	0.094	mm
	Enamelled grade 2 min.	0.095	mm
	Enamelled grade 2 max.	0.101	mm

Conductor nominal Ø		0.085	mm
Conductor cross section		0.006	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.015	kg/km
Copper	Resistance min.	2.7867	Ω/m
	Resistance max.	3.2648	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.051	kg/km
Ø	Conductor min.	0.082	mm
	Conductor max.	0.088	mm
	Enamelled grade 1 min.	0.093	mm
	Enamelled grade 1 max.	0.100	mm
	Enamelled grade 2 min.	0.101	mm
	Enamelled grade 2 max.	0.107	mm

Conductor nominal Ø		0.090	mm
Conductor cross section		0.006	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.017	kg/km
Copper	Resistance min.	2.4951	Ω/m
	Resistance max.	2.9003	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.057	kg/km
Ø	Conductor min.	0.087	mm
	Conductor max.	0.093	mm
	Enamelled grade 1 min.	0.098	mm
	Enamelled grade 1 max.	0.105	mm
	Enamelled grade 2 min.	0.106	mm
	Enamelled grade 2 max.	0.113	mm

Conductor nominal Ø		0.095	mm
Conductor cross section		0.007	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.019	kg/km
Copper	Resistance min.	2.2470	Ω/m
	Resistance max.	2.5936	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.063	kg/km
Ø	Conductor min.	0.092	mm
	Conductor max.	0.098	mm
	Enamelled grade 1 min.	0.103	mm
	Enamelled grade 1 max.	0.111	mm
	Enamelled grade 2 min.	0.112	mm
	Enamelled grade 2 max.	0.119	mm

Conductor nominal Ø		0.100	mm
Conductor cross section		0.008	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.021	kg/km
Copper	Resistance min.	2.0342	Ω/m
	Resistance max.	2.3331	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.070	kg/km
Ø	Conductor min.	0.097	mm
	Conductor max.	0.103	mm
	Enamelled grade 1 min.	0.108	mm
	Enamelled grade 1 max.	0.117	mm
	Enamelled grade 2 min.	0.118	mm
	Enamelled grade 2 max.	0.125	mm

Conductor nominal Ø		0.106	mm
Conductor cross section		0.009	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.024	kg/km
Copper	Resistance min.	1.8164	Ω/m
	Resistance max.	2.0692	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.079	kg/km
Ø	Conductor min.	0.103	mm
	Conductor max.	0.109	mm
	Enamelled grade 1 min.	0.115	mm
	Enamelled grade 1 max.	0.123	mm
	Enamelled grade 2 min.	0.124	mm
	Enamelled grade 2 max.	0.132	mm

Conductor nominal Ø		0.112	mm
Conductor cross section		0.010	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.027	kg/km
Copper	Resistance min.	1.6318	Ω/m
	Resistance max.	1.8407	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.088	kg/km
Ø	Conductor min.	0.109	mm
	Conductor max.	0.115	mm
	Enamelled grade 1 min.	0.121	mm
	Enamelled grade 1 max.	0.130	mm
	Enamelled grade 2 min.	0.131	mm
	Enamelled grade 2 max.	0.139	mm

Conductor nominal Ø		0.118	mm
Conductor cross section		0.011	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.030	kg/km
Copper	Resistance min.	1.4740	Ω/m
	Resistance max.	1.6599	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.098	kg/km
Ø	Conductor min.	0.115	mm
	Conductor max.	0.121	mm
	Enamelled grade 1 min.	0.128	mm
	Enamelled grade 1 max.	0.136	mm
	Enamelled grade 2 min.	0.137	mm
	Enamelled grade 2 max.	0.145	mm

Conductor nominal Ø		0.125	mm
Conductor cross section		0.012	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.033	kg/km
Copper	Resistance min.	1.3172	Ω/m
	Resistance max.	1.4749	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.109	kg/km
Ø	Conductor min.	0.122	mm
	Conductor max.	0.128	mm
	Enamelled grade 1 min.	0.135	mm
	Enamelled grade 1 max.	0.144	mm
	Enamelled grade 2 min.	0.145	mm
	Enamelled grade 2 max.	0.154	mm

Conductor nominal Ø		0.132	mm
Conductor cross section		0.014	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.037	kg/km
Copper	Resistance min.	1.1841	Ω/m
	Resistance max.	1.3192	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.122	kg/km
Ø	Conductor min.	0.129	mm
	Conductor max.	0.135	mm
	Enamelled grade 1 min.	0.143	mm
	Enamelled grade 1 max.	0.152	mm
	Enamelled grade 2 min.	0.153	mm
	Enamelled grade 2 max.	0.162	mm

Conductor nominal Ø		0.140	mm
Conductor cross section		0.015	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.042	kg/km
Copper	Resistance min.	1.0553	Ω/m
	Resistance max.	1.1696	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.137	kg/km
Ø	Conductor min.	0.137	mm
	Conductor max.	0.143	mm
	Enamelled grade 1 min.	0.151	mm
	Enamelled grade 1 max.	0.160	mm
	Enamelled grade 2 min.	0.161	mm
	Enamelled grade 2 max.	0.171	mm

Conductor nominal Ø		0.150	mm
Conductor cross section		0.018	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.048	kg/km
Copper	Resistance min.	0.9219	Ω/m
	Resistance max.	1.0159	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.158	kg/km
Ø	Conductor min.	0.147	mm
	Conductor max.	0.153	mm
	Enamelled grade 1 min.	0.162	mm
	Enamelled grade 1 max.	0.171	mm
	Enamelled grade 2 min.	0.172	mm
	Enamelled grade 2 max.	0.182	mm

Conductor nominal Ø		0.160	mm
Conductor cross section		0.020	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.054	kg/km
Copper	Resistance min.	0.8122	Ω/m
	Resistance max.	0.8906	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.179	kg/km
Ø	Conductor min.	0.157	mm
	Conductor max.	0.163	mm
	Enamelled grade 1 min.	0.172	mm
	Enamelled grade 1 max.	0.182	mm
	Enamelled grade 2 min.	0.183	mm
	Enamelled grade 2 max.	0.194	mm

Conductor nominal Ø		0.170	mm
Conductor cross section		0.023	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.061	kg/km
Copper	Resistance min.	0.7211	Ω/m
	Resistance max.	0.7871	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.202	kg/km
Ø	Conductor min.	0.167	mm
	Conductor max.	0.173	mm
	Enamelled grade 1 min.	0.183	mm
	Enamelled grade 1 max.	0.194	mm
	Enamelled grade 2 min.	0.195	mm
	Enamelled grade 2 max.	0.205	mm

Conductor nominal Ø		0.180	mm
Conductor cross section		0.025	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.069	kg/km
Copper	Resistance min.	0.6444	Ω/m
	Resistance max.	0.7007	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.227	kg/km
Ø	Conductor min.	0.177	mm
	Conductor max.	0.183	mm
	Enamelled grade 1 min.	0.193	mm
	Enamelled grade 1 max.	0.204	mm
	Enamelled grade 2 min.	0.205	mm
	Enamelled grade 2 max.	0.217	mm

Conductor nominal Ø		0.190	mm
Conductor cross section		0.028	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.077	kg/km
Copper	Resistance min.	0.5794	Ω/m
	Resistance max.	0.6278	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.253	kg/km
Ø	Conductor min.	0.187	mm
	Conductor max.	0.193	mm
	Enamelled grade 1 min.	0.204	mm
	Enamelled grade 1 max.	0.216	mm
	Enamelled grade 2 min.	0.217	mm
	Enamelled grade 2 max.	0.228	mm

Conductor nominal Ø		0.200	mm
Conductor cross section		0.031	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.085	kg/km
Copper	Resistance min.	0.5237	Ω/m
	Resistance max.	0.5657	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.280	kg/km
Ø	Conductor min.	0.197	mm
	Conductor max.	0.203	mm
	Enamelled grade 1 min.	0.214	mm
	Enamelled grade 1 max.	0.226	mm
	Enamelled grade 2 min.	0.227	mm
	Enamelled grade 2 max.	0.239	mm

Conductor nominal Ø		0.212	mm
Conductor cross section		0.035	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.095	kg/km
Copper	Resistance min.	0.4669	Ω/m
	Resistance max.	0.5026	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.315	kg/km
Ø	Conductor min.	0.209	mm
	Conductor max.	0.215	mm
	Enamelled grade 1 min.	0.227	mm
	Enamelled grade 1 max.	0.240	mm
	Enamelled grade 2 min.	0.241	mm
	Enamelled grade 2 max.	0.254	mm

Conductor nominal Ø		0.224	mm
Conductor cross section		0.039	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.106	kg/km
Copper	Resistance min.	0.4188	Ω/m
	Resistance max.	0.4495	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.352	kg/km
Ø	Conductor min.	0.221	mm
	Conductor max.	0.227	mm
	Enamelled grade 1 min.	0.239	mm
	Enamelled grade 1 max.	0.252	mm
	Enamelled grade 2 min.	0.253	mm
	Enamelled grade 2 max.	0.266	mm

Conductor nominal Ø		0.236	mm
Conductor cross section		0.044	mm²
Aluminium	Resistance min.	-	Ω/m
	Resistance max.	-	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.118	kg/km
Copper	Resistance min.	0.3747	Ω/m
	Resistance max.	0.4079	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.390	kg/km
Ø	Conductor min.	0.232	mm
	Conductor max.	0.240	mm
	Enamelled grade 1 min.	0.253	mm
	Enamelled grade 1 max.	0.267	mm
	Enamelled grade 2 min.	0.268	mm
	Enamelled grade 2 max.	0.283	mm

Conductor nominal Ø		0.250	mm
Conductor cross section		0.049	mm²
Aluminium	Resistance min.	0.5452	Ω/m
	Resistance max.	0.5927	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.133	kg/km
Copper	Resistance min.	0.3345	Ω/m
	Resistance max.	0.3628	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.438	kg/km
Ø	Conductor min.	0.246	mm
	Conductor max.	0.254	mm
	Enamelled grade 1 min.	0.267	mm
	Enamelled grade 1 max.	0.281	mm
	Enamelled grade 2 min.	0.282	mm
	Enamelled grade 2 max.	0.297	mm

Conductor nominal Ø		0.265	mm
Conductor cross section		0.055	mm²
Aluminium	Resistance min.	0.4861	Ω/m
	Resistance max.	0.5265	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.149	kg/km
Copper	Resistance min.	0.2982	Ω/m
	Resistance max.	0.3223	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.492	kg/km
Ø	Conductor min.	0.261	mm
	Conductor max.	0.269	mm
	Enamelled grade 1 min.	0.283	mm
	Enamelled grade 1 max.	0.297	mm
	Enamelled grade 2 min.	0.298	mm
	Enamelled grade 2 max.	0.314	mm

Conductor nominal Ø		0.280	mm
Conductor cross section		0.062	mm²
Aluminium	Resistance min.	0.4361	Ω/m
	Resistance max.	0.4708	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.166	kg/km
Copper	Resistance min.	0.2676	Ω/m
	Resistance max.	0.2882	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.549	kg/km
Ø	Conductor min.	0.276	mm
	Conductor max.	0.284	mm
	Enamelled grade 1 min.	0.298	mm
	Enamelled grade 1 max.	0.312	mm
	Enamelled grade 2 min.	0.313	mm
	Enamelled grade 2 max.	0.329	mm

Conductor nominal Ø		0.300	mm
Conductor cross section		0.071	mm²
Aluminium	Resistance min.	0.3806	Ω/m
	Resistance max.	0.4094	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.191	kg/km
Copper	Resistance min.	0.2335	Ω/m
	Resistance max.	0.2506	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.631	kg/km
Ø	Conductor min.	0.296	mm
	Conductor max.	0.304	mm
	Enamelled grade 1 min.	0.319	mm
	Enamelled grade 1 max.	0.334	mm
	Enamelled grade 2 min.	0.335	mm
	Enamelled grade 2 max.	0.352	mm

Conductor nominal Ø		0.315	mm
Conductor cross section		0.078	mm²
Aluminium	Resistance min.	0.3456	Ω/m
	Resistance max.	0.3708	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.210	kg/km
Copper	Resistance min.	0.2121	Ω/m
	Resistance max.	0.2270	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.695	kg/km
Ø	Conductor min.	0.311	mm
	Conductor max.	0.319	mm
	Enamelled grade 1 min.	0.334	mm
	Enamelled grade 1 max.	0.349	mm
	Enamelled grade 2 min.	0.350	mm
	Enamelled grade 2 max.	0.367	mm

Conductor nominal Ø		0.335	mm
Conductor cross section		0.088	mm²
Aluminium	Resistance min.	0.3061	Ω/m
	Resistance max.	0.3274	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.238	kg/km
Copper	Resistance min.	0.1878	Ω/m
	Resistance max.	0.2004	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.786	kg/km
Ø	Conductor min.	0.331	mm
	Conductor max.	0.339	mm
	Enamelled grade 1 min.	0.355	mm
	Enamelled grade 1 max.	0.372	mm
	Enamelled grade 2 min.	0.373	mm
	Enamelled grade 2 max.	0.391	mm

Conductor nominal Ø		0.355	mm
Conductor cross section		0.099	mm²
Aluminium	Resistance min.	0.2729	Ω/m
	Resistance max.	0.2911	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.267	kg/km
Copper	Resistance min.	0.1674	Ω/m
	Resistance max.	0.1782	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.883	kg/km
Ø	Conductor min.	0.351	mm
	Conductor max.	0.359	mm
	Enamelled grade 1 min.	0.375	mm
	Enamelled grade 1 max.	0.392	mm
	Enamelled grade 2 min.	0.393	mm
	Enamelled grade 2 max.	0.411	mm

Conductor nominal Ø		0.375	mm
Conductor cross section		0.110	mm²
Aluminium	Resistance min.	0.2436	Ω/m
	Resistance max.	0.2620	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.298	kg/km
Copper	Resistance min.	0.1495	Ω/m
	Resistance max.	0.1604	Ω/m
	Weight (only conductor, 8.92 g/cm³)	0.985	kg/km
Ø	Conductor min.	0.370	mm
	Conductor max.	0.380	mm
	Enamelled grade 1 min.	0.396	mm
	Enamelled grade 1 max.	0.414	mm
	Enamelled grade 2 min.	0.415	mm
	Enamelled grade 2 max.	0.434	mm

Conductor nominal Ø		0.400	mm
Conductor cross section		0.126	mm²
Aluminium	Resistance min.	0.2144	Ω/m
	Resistance max.	0.2299	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.339	kg/km
Copper	Resistance min.	0.1316	Ω/m
	Resistance max.	0.1407	Ω/m
	Weight (only conductor, 8.92 g/cm³)	1.121	kg/km
Ø	Conductor min.	0.395	mm
	Conductor max.	0.405	mm
	Enamelled grade 1 min.	0.421	mm
	Enamelled grade 1 max.	0.439	mm
	Enamelled grade 2 min.	0.440	mm
	Enamelled grade 2 max.	0.459	mm

Conductor nominal Ø		0.425	mm
Conductor cross section		0.142	mm²
Aluminium	Resistance min.	0.1902	Ω/m
	Resistance max.	0.2033	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.383	kg/km
Copper	Resistance min.	0.1167	Ω/m
	Resistance max.	0.1245	Ω/m
	Weight (only conductor, 8.92 g/cm³)	1.265	kg/km
Ø	Conductor min.	0.420	mm
	Conductor max.	0.430	mm
	Enamelled grade 1 min.	0.447	mm
	Enamelled grade 1 max.	0.466	mm
	Enamelled grade 2 min.	0.467	mm
	Enamelled grade 2 max.	0.488	mm

Conductor nominal Ø		0.450	mm
Conductor cross section		0.159	mm²
Aluminium	Resistance min.	0.1699	Ω/m
	Resistance max.	0.1811	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.429	kg/km
Copper	Resistance min.	0.1042	Ω/m
	Resistance max.	0.1109	Ω/m
	Weight (only conductor, 8.92 g/cm³)	1.419	kg/km
Ø	Conductor min.	0.445	mm
	Conductor max.	0.455	mm
	Enamelled grade 1 min.	0.472	mm
	Enamelled grade 1 max.	0.491	mm
	Enamelled grade 2 min.	0.492	mm
	Enamelled grade 2 max.	0.513	mm

Conductor nominal Ø		0.475	mm
Conductor cross section		0.177	mm²
Aluminium	Resistance min.	0.1527	Ω/m
	Resistance max.	0.1624	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.478	kg/km
Copper	Resistance min.	0.0937	Ω/m
	Resistance max.	0.0994	Ω/m
	Weight (only conductor, 8.92 g/cm³)	1.581	kg/km
Ø	Conductor min.	0.470	mm
	Conductor max.	0.480	mm
	Enamelled grade 1 min.	0.499	mm
	Enamelled grade 1 max.	0.519	mm
	Enamelled grade 2 min.	0.520	mm
	Enamelled grade 2 max.	0.541	mm

Conductor nominal Ø		0.500	mm
Conductor cross section		0.196	mm²
Aluminium	Resistance min.	0.1379	Ω/m
	Resistance max.	0.1464	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.530	kg/km
Copper	Resistance min.	0.0846	Ω/m
	Resistance max.	0.0896	Ω/m
	Weight (only conductor, 8.92 g/cm³)	1.751	kg/km
Ø	Conductor min.	0.495	mm
	Conductor max.	0.505	mm
	Enamelled grade 1 min.	0.524	mm
	Enamelled grade 1 max.	0.544	mm
	Enamelled grade 2 min.	0.545	mm
	Enamelled grade 2 max.	0.566	mm

Conductor nominal Ø		0.530	mm
Conductor cross section		0.221	mm²
Aluminium	Resistance min.	0.1224	Ω/m
	Resistance max.	0.1306	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.596	kg/km
Copper	Resistance min.	0.0751	Ω/m
	Resistance max.	0.0800	Ω/m
	Weight (only conductor, 8.92 g/cm³)	1.968	kg/km
Ø	Conductor min.	0.524	mm
	Conductor max.	0.536	mm
	Enamelled grade 1 min.	0.555	mm
	Enamelled grade 1 max.	0.576	mm
	Enamelled grade 2 min.	0.577	mm
	Enamelled grade 2 max.	0.600	mm

Conductor nominal Ø		0.560	mm
Conductor cross section		0.246	mm²
Aluminium	Resistance min.	0.1098	Ω/m
	Resistance max.	0.1169	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.665	kg/km
Copper	Resistance min.	0.0674	Ω/m
	Resistance max.	0.0715	Ω/m
	Weight (only conductor, 8.92 g/cm³)	2.197	kg/km
Ø	Conductor min.	0.554	mm
	Conductor max.	0.566	mm
	Enamelled grade 1 min.	0.585	mm
	Enamelled grade 1 max.	0.606	mm
	Enamelled grade 2 min.	0.607	mm
	Enamelled grade 2 max.	0.630	mm

Conductor nominal Ø		0.600	mm
Conductor cross section		0.283	mm²
Aluminium	Resistance min.	0.0958	Ω/m
	Resistance max.	0.1017	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.763	kg/km
Copper	Resistance min.	0.0588	Ω/m
	Resistance max.	0.0622	Ω/m
	Weight (only conductor, 8.92 g/cm³)	2.522	kg/km
Ø	Conductor min.	0.594	mm
	Conductor max.	0.606	mm
	Enamelled grade 1 min.	0.627	mm
	Enamelled grade 1 max.	0.649	mm
	Enamelled grade 2 min.	0.650	mm
	Enamelled grade 2 max.	0.674	mm

Conductor nominal Ø		0.630	mm
Conductor cross section		0.312	mm²
Aluminium	Resistance min.	0.0870	Ω/m
	Resistance max.	0.0921	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.842	kg/km
Copper	Resistance min.	0.0534	Ω/m
	Resistance max.	0.0564	Ω/m
	Weight (only conductor, 8.92 g/cm³)	2.781	kg/km
Ø	Conductor min.	0.624	mm
	Conductor max.	0.636	mm
	Enamelled grade 1 min.	0.657	mm
	Enamelled grade 1 max.	0.679	mm
	Enamelled grade 2 min.	0.680	mm
	Enamelled grade 2 max.	0.704	mm

Conductor nominal Ø		0.670	mm
Conductor cross section		0.353	mm²
Aluminium	Resistance min.	0.0767	Ω/m
	Resistance max.	0.0816	Ω/m
	Weight (only conductor, 2.7 g/cm³)	0.952	kg/km
Copper	Resistance min.	0.0471	Ω/m
	Resistance max.	0.0499	Ω/m
	Weight (only conductor, 8.92 g/cm³)	3.145	kg/km
Ø	Conductor min.	0.663	mm
	Conductor max.	0.677	mm
	Enamelled grade 1 min.	0.698	mm
	Enamelled grade 1 max.	0.722	mm
	Enamelled grade 2 min.	0.723	mm
	Enamelled grade 2 max.	0.749	mm

Conductor nominal Ø		0.710	mm
Conductor cross section		0.396	mm²
Aluminium	Resistance min.	0.0684	Ω/m
	Resistance max.	0.0726	Ω/m
	Weight (only conductor, 2.7 g/cm³)	1.069	kg/km
Copper	Resistance min.	0.0420	Ω/m
	Resistance max.	0.0444	Ω/m
	Weight (only conductor, 8.92 g/cm³)	3.532	kg/km
Ø	Conductor min.	0.703	mm
	Conductor max.	0.717	mm
	Enamelled grade 1 min.	0.738	mm
	Enamelled grade 1 max.	0.762	mm
	Enamelled grade 2 min.	0.763	mm
	Enamelled grade 2 max.	0.789	mm

Conductor nominal Ø		0.750	mm
Conductor cross section		0.442	mm²
Aluminium	Resistance min.	0.0612	Ω/m
	Resistance max.	0.0651	Ω/m
	Weight (only conductor, 2.7 g/cm³)	1.193	kg/km
Copper	Resistance min.	0.0376	Ω/m
	Resistance max.	0.0399	Ω/m
	Weight (only conductor, 8.92 g/cm³)	3.941	kg/km
Ø	Conductor min.	0.742	mm
	Conductor max.	0.758	mm
	Enamelled grade 1 min.	0.780	mm
	Enamelled grade 1 max.	0.805	mm
	Enamelled grade 2 min.	0.806	mm
	Enamelled grade 2 max.	0.834	mm

Conductor nominal Ø		0.800	mm
Conductor cross section		0.503	mm²
Aluminium	Resistance min.	0.0539	Ω/m
	Resistance max.	0.0572	Ω/m
	Weight (only conductor, 2.7 g/cm³)	1.357	kg/km
Copper	Resistance min.	0.0331	Ω/m
	Resistance max.	0.0350	Ω/m
	Weight (only conductor, 8.92 g/cm³)	4.484	kg/km
Ø	Conductor min.	0.792	mm
	Conductor max.	0.808	mm
	Enamelled grade 1 min.	0.830	mm
	Enamelled grade 1 max.	0.855	mm
	Enamelled grade 2 min.	0.856	mm
	Enamelled grade 2 max.	0.884	mm

Conductor nominal Ø		0.850	mm
Conductor cross section		0.567	mm²
Aluminium	Resistance min.	0.0477	Ω/m
	Resistance max.	0.0507	Ω/m
	Weight (only conductor, 2.7 g/cm³)	1.532	kg/km
Copper	Resistance min.	0.0292	Ω/m
	Resistance max.	0.0310	Ω/m
	Weight (only conductor, 8.92 g/cm³)	5.062	kg/km
Ø	Conductor min.	0.841	mm
	Conductor max.	0.859	mm
	Enamelled grade 1 min.	0.882	mm
	Enamelled grade 1 max.	0.909	mm
	Enamelled grade 2 min.	0.910	mm
	Enamelled grade 2 max.	0.939	mm

Conductor nominal Ø		0.900	mm
Conductor cross section		0.636	mm²
Aluminium	Resistance min.	0.0426	Ω/m
	Resistance max.	0.0452	Ω/m
	Weight (only conductor, 2.7 g/cm³)	1.718	kg/km
Copper	Resistance min.	0.0261	Ω/m
	Resistance max.	0.0277	Ω/m
	Weight (only conductor, 8.92 g/cm³)	5.675	kg/km
Ø	Conductor min.	0.891	mm
	Conductor max.	0.909	mm
	Enamelled grade 1 min.	0.932	mm
	Enamelled grade 1 max.	0.959	mm
	Enamelled grade 2 min.	0.960	mm
	Enamelled grade 2 max.	0.989	mm

Conductor nominal Ø		0.950	mm
Conductor cross section		0.709	mm²
Aluminium	Resistance min.	0.0382	Ω/m
	Resistance max.	0.0406	Ω/m
	Weight (only conductor, 2.7 g/cm³)	1.914	kg/km
Copper	Resistance min.	0.0234	Ω/m
	Resistance max.	0.0248	Ω/m
	Weight (only conductor, 8.92 g/cm³)	6.323	kg/km
Ø	Conductor min.	0.940	mm
	Conductor max.	0.960	mm
	Enamelled grade 1 min.	0.984	mm
	Enamelled grade 1 max.	1.012	mm
	Enamelled grade 2 min.	1.013	mm
	Enamelled grade 2 max.	1.044	mm

Conductor nominal Ø		1.000	mm
Conductor cross section		0.785	mm²
Aluminium	Resistance min.	0.0345	Ω/m
	Resistance max.	0.0366	Ω/m
	Weight (only conductor, 2.7 g/cm³)	2.121	kg/km
Copper	Resistance min.	0.0212	Ω/m
	Resistance max.	0.0224	Ω/m
	Weight (only conductor, 8.92 g/cm³)	7.006	kg/km
Ø	Conductor min.	0.990	mm
	Conductor max.	1.010	mm
	Enamelled grade 1 min.	1.034	mm
	Enamelled grade 1 max.	1.062	mm
	Enamelled grade 2 min.	1.063	mm
	Enamelled grade 2 max.	1.094	mm

Conductor nominal Ø		1.060	mm
Conductor cross section		0.882	mm²
Aluminium	Resistance min.	0.0307	Ω/m
	Resistance max.	0.0326	Ω/m
	Weight (only conductor, 2.7 g/cm³)	2.383	kg/km
Copper	Resistance min.	0.0188	Ω/m
	Resistance max.	0.0199	Ω/m
	Weight (only conductor, 8.92 g/cm³)	7.872	kg/km
Ø	Conductor min.	1.049	mm
	Conductor max.	1.071	mm
	Enamelled grade 1 min.	1.094	mm
	Enamelled grade 1 max.	1.124	mm
	Enamelled grade 2 min.	1.125	mm
	Enamelled grade 2 max.	1.157	mm

Conductor nominal Ø		1.120	mm
Conductor cross section		0.985	mm²
Aluminium	Resistance min.	0.0275	Ω/m
	Resistance max.	0.0292	Ω/m
	Weight (only conductor, 2.7 g/cm³)	2.660	kg/km
Copper	Resistance min.	0.0169	Ω/m
	Resistance max.	0.0178	Ω/m
	Weight (only conductor, 8.92 g/cm³)	8.788	kg/km
Ø	Conductor min.	1.109	mm
	Conductor max.	1.131	mm
	Enamelled grade 1 min.	1.154	mm
	Enamelled grade 1 max.	1.184	mm
	Enamelled grade 2 min.	1.185	mm
	Enamelled grade 2 max.	1.217	mm

Conductor nominal Ø		1.180	mm
Conductor cross section		1.094	mm²
Aluminium	Resistance min.	0.0248	Ω/m
	Resistance max.	0.0263	Ω/m
	Weight (only conductor, 2.7 g/cm³)	2.953	kg/km
Copper	Resistance min.	0.0152	Ω/m
	Resistance max.	0.0161	Ω/m
	Weight (only conductor, 8.92 g/cm³)	9.755	kg/km
Ø	Conductor min.	1.168	mm
	Conductor max.	1.192	mm
	Enamelled grade 1 min.	1.215	mm
	Enamelled grade 1 max.	1.246	mm
	Enamelled grade 2 min.	1.247	mm
	Enamelled grade 2 max.	1.279	mm

Conductor nominal Ø		1.250	mm
Conductor cross section		1.227	mm²
Aluminium	Resistance min.	0.0220	Ω/m
	Resistance max.	0.0234	Ω/m
	Weight (only conductor, 2.7 g/cm³)	3.313	kg/km
Copper	Resistance min.	0.0135	Ω/m
	Resistance max.	0.0143	Ω/m
	Weight (only conductor, 8.92 g/cm³)	10.946	kg/km
Ø	Conductor min.	1.237	mm
	Conductor max.	1.263	mm
	Enamelled grade 1 min.	1.285	mm
	Enamelled grade 1 max.	1.316	mm
	Enamelled grade 2 min.	1.317	mm
	Enamelled grade 2 max.	1.349	mm

Conductor nominal Ø		1.320	mm
Conductor cross section		1.368	mm²
Aluminium	Resistance min.	0.0198	Ω/m
	Resistance max.	0.0210	Ω/m
	Weight (only conductor, 2.7 g/cm³)	3.695	kg/km
Copper	Resistance min.	0.0121	Ω/m
	Resistance max.	0.0129	Ω/m
	Weight (only conductor, 8.92 g/cm³)	12.207	kg/km
Ø	Conductor min.	1.307	mm
	Conductor max.	1.333	mm
	Enamelled grade 1 min.	1.356	mm
	Enamelled grade 1 max.	1.388	mm
	Enamelled grade 2 min.	1.389	mm
	Enamelled grade 2 max.	1.422	mm

Conductor nominal Ø		1.400	mm
Conductor cross section		1.539	mm²
Aluminium	Resistance min.	0.0176	Ω/m
	Resistance max.	0.0187	Ω/m
	Weight (only conductor, 2.7 g/cm³)	4.156	kg/km
Copper	Resistance min.	0.0108	Ω/m
	Resistance max.	0.0114	Ω/m
	Weight (only conductor, 8.92 g/cm³)	13.731	kg/km
Ø	Conductor min.	1.386	mm
	Conductor max.	1.414	mm
	Enamelled grade 1 min.	1.436	mm
	Enamelled grade 1 max.	1.468	mm
	Enamelled grade 2 min.	1.469	mm
	Enamelled grade 2 max.	1.502	mm

Conductor nominal Ø		1.500	mm
Conductor cross section		1.767	mm²
Aluminium	Resistance min.	0.0153	Ω/m
	Resistance max.	0.0163	Ω/m
	Weight (only conductor, 2.7 g/cm³)	4.771	kg/km
Copper	Resistance min.	0.0094	Ω/m
	Resistance max.	0.0100	Ω/m
	Weight (only conductor, 8.92 g/cm³)	15.763	kg/km
Ø	Conductor min.	1.485	mm
	Conductor max.	1.515	mm
	Enamelled grade 1 min.	1.538	mm
	Enamelled grade 1 max.	1.570	mm
	Enamelled grade 2 min.	1.571	mm
	Enamelled grade 2 max.	1.606	mm

Conductor nominal Ø		1.600	mm
Conductor cross section		2.011	mm²
Aluminium	Resistance min.	0.0135	Ω/m
	Resistance max.	0.0143	Ω/m
	Weight (only conductor, 2.7 g/cm³)	5.429	kg/km
Copper	Resistance min.	0.0083	Ω/m
	Resistance max.	0.0087	Ω/m
	Weight (only conductor, 8.92 g/cm³)	17.935	kg/km
Ø	Conductor min.	1.584	mm
	Conductor max.	1.616	mm
	Enamelled grade 1 min.	1.638	mm
	Enamelled grade 1 max.	1.670	mm
	Enamelled grade 2 min.	1.671	mm
	Enamelled grade 2 max.	1.706	mm

Conductor nominal Ø		1.700	mm
Conductor cross section		2.270	mm²
Aluminium	Resistance min.	0.0119	Ω/m
	Resistance max.	0.0127	Ω/m
	Weight (only conductor, 2.7 g/cm³)	6.128	kg/km
Copper	Resistance min.	0.0073	Ω/m
	Resistance max.	0.0078	Ω/m
	Weight (only conductor, 8.92 g/cm³)	20.247	kg/km
Ø	Conductor min.	1.683	mm
	Conductor max.	1.717	mm
	Enamelled grade 1 min.	1.739	mm
	Enamelled grade 1 max.	1.772	mm
	Enamelled grade 2 min.	1.773	mm
	Enamelled grade 2 max.	1.809	mm

Conductor nominal Ø		1.800	mm
Conductor cross section		2.545	mm²
Aluminium	Resistance min.	0.0106	Ω/m
	Resistance max.	0.0113	Ω/m
	Weight (only conductor, 2.7 g/cm³)	6.871	kg/km
Copper	Resistance min.	0.0065	Ω/m
	Resistance max.	0.0069	Ω/m
	Weight (only conductor, 8.92 g/cm³)	22.699	kg/km
Ø	Conductor min.	1.782	mm
	Conductor max.	1.818	mm
	Enamelled grade 1 min.	1.839	mm
	Enamelled grade 1 max.	1.872	mm
	Enamelled grade 2 min.	1.873	mm
	Enamelled grade 2 max.	1.909	mm

Conductor nominal Ø		1.900	mm
Conductor cross section		2.835	mm²
Aluminium	Resistance min.	0.0096	Ω/m
	Resistance max.	0.0101	Ω/m
	Weight (only conductor, 2.7 g/cm³)	7.655	kg/km
Copper	Resistance min.	0.0059	Ω/m
	Resistance max.	0.0062	Ω/m
	Weight (only conductor, 8.92 g/cm³)	25.291	kg/km
Ø	Conductor min.	1.881	mm
	Conductor max.	1.919	mm
	Enamelled grade 1 min.	1.940	mm
	Enamelled grade 1 max.	1.974	mm
	Enamelled grade 2 min.	1.975	mm
	Enamelled grade 2 max.	2.012	mm

Conductor nominal Ø		2.000	mm
Conductor cross section		3.142	mm²
Aluminium	Resistance min.	0.0086	Ω/m
	Resistance max.	0.0091	Ω/m
	Weight (only conductor, 2.7 g/cm³)	8.482	kg/km
Copper	Resistance min.	0.0053	Ω/m
	Resistance max.	0.0056	Ω/m
	Weight (only conductor, 8.92 g/cm³)	28.023	kg/km
Ø	Conductor min.	1.980	mm
	Conductor max.	2.020	mm
	Enamelled grade 1 min.	2.040	mm
	Enamelled grade 1 max.	2.074	mm
	Enamelled grade 2 min.	2.075	mm
	Enamelled grade 2 max.	2.112	mm

Conductor nominal Ø		2.120	mm
Conductor cross section		3.530	mm²
Aluminium	Resistance min.	0.0077	Ω/m
	Resistance max.	0.0081	Ω/m
	Weight (only conductor, 2.7 g/cm³)	9.531	kg/km
Copper	Resistance min.	0.0047	Ω/m
	Resistance max.	0.0050	Ω/m
	Weight (only conductor, 8.92 g/cm³)	31.487	kg/km
Ø	Conductor min.	2.099	mm
	Conductor max.	2.141	mm
	Enamelled grade 1 min.	2.161	mm
	Enamelled grade 1 max.	2.196	mm
	Enamelled grade 2 min.	2.197	mm
	Enamelled grade 2 max.	2.235	mm

Conductor nominal Ø		2.240	mm
Conductor cross section		3.941	mm²
Aluminium	Resistance min.	0.0069	Ω/m
	Resistance max.	0.0073	Ω/m
	Weight (only conductor, 2.7 g/cm³)	10.640	kg/km
Copper	Resistance min.	0.0042	Ω/m
	Resistance max.	0.0045	Ω/m
	Weight (only conductor, 8.92 g/cm³)	35.152	kg/km
Ø	Conductor min.	2.218	mm
	Conductor max.	2.262	mm
	Enamelled grade 1 min.	2.281	mm
	Enamelled grade 1 max.	2.316	mm
	Enamelled grade 2 min.	2.317	mm
	Enamelled grade 2 max.	2.355	mm

Conductor nominal Ø		2.360	mm
Conductor cross section		4.374	mm²
Aluminium	Resistance min.	0.0062	Ω/m
	Resistance max.	0.0066	Ω/m
	Weight (only conductor, 2.7 g/cm³)	11.811	kg/km
Copper	Resistance min.	0.0038	Ω/m
	Resistance max.	0.0040	Ω/m
	Weight (only conductor, 8.92 g/cm³)	39.019	kg/km
Ø	Conductor min.	2.336	mm
	Conductor max.	2.384	mm
	Enamelled grade 1 min.	2.402	mm
	Enamelled grade 1 max.	2.438	mm
	Enamelled grade 2 min.	2.439	mm
	Enamelled grade 2 max.	2.478	mm

Conductor nominal Ø		2.500	mm
Conductor cross section		4.909	mm²
Aluminium	Resistance min.	0.0055	Ω/m
	Resistance max.	0.0059	Ω/m
	Weight (only conductor, 2.7 g/cm³)	13.254	kg/km
Copper	Resistance min.	0.0034	Ω/m
	Resistance max.	0.0036	Ω/m
	Weight (only conductor, 8.92 g/cm³)	43.786	kg/km
Ø	Conductor min.	2.475	mm
	Conductor max.	2.525	mm
	Enamelled grade 1 min.	2.542	mm
	Enamelled grade 1 max.	2.578	mm
	Enamelled grade 2 min.	2.579	mm
	Enamelled grade 2 max.	2.618	mm

Conductor nominal Ø		2.650	mm
Conductor cross section		5.515	mm²
Aluminium	Resistance min.	0.0049	Ω/m
	Resistance max.	0.0052	Ω/m
	Weight (only conductor, 2.7 g/cm³)	14.892	kg/km
Copper	Resistance min.	0.0030	Ω/m
	Resistance max.	0.0032	Ω/m
	Weight (only conductor, 8.92 g/cm³)	49.198	kg/km
Ø	Conductor min.	2.623	mm
	Conductor max.	2.677	mm
	Enamelled grade 1 min.	2.693	mm
	Enamelled grade 1 max.	2.730	mm
	Enamelled grade 2 min.	2.731	mm
	Enamelled grade 2 max.	2.772	mm

Conductor nominal Ø		2.800	mm
Conductor cross section		6.158	mm²
Aluminium	Resistance min.	0.0044	Ω/m
	Resistance max.	0.0047	Ω/m
	Weight (only conductor, 2.7 g/cm³)	16.625	kg/km
Copper	Resistance min.	0.0027	Ω/m
	Resistance max.	0.0029	Ω/m
	Weight (only conductor, 8.92 g/cm³)	54.925	kg/km
Ø	Conductor min.	2.772	mm
	Conductor max.	2.828	mm
	Enamelled grade 1 min.	2.843	mm
	Enamelled grade 1 max.	2.880	mm
	Enamelled grade 2 min.	2.881	mm
	Enamelled grade 2 max.	2.922	mm

Conductor nominal Ø		3.000	mm
Conductor cross section		7.069	mm²
Aluminium	Resistance min.	0.0038	Ω/m
	Resistance max.	0.0041	Ω/m
	Weight (only conductor, 2.7 g/cm³)	19.085	kg/km
Copper	Resistance min.	0.0024	Ω/m
	Resistance max.	0.0025	Ω/m
	Weight (only conductor, 8.92 g/cm³)	63.052	kg/km
Ø	Conductor min.	2.970	mm
	Conductor max.	3.030	mm
	Enamelled grade 1 min.	3.045	mm
	Enamelled grade 1 max.	3.083	mm
	Enamelled grade 2 min.	3.084	mm
	Enamelled grade 2 max.	3.126	mm

Conductor nominal Ø		3.150	mm
Conductor cross section		7.793	mm²
Aluminium	Resistance min.	0.0035	Ω/m
	Resistance max.	0.0037	Ω/m
	Weight (only conductor, 2.7 g/cm³)	21.041	kg/km
Copper	Resistance min.	0.0021	Ω/m
	Resistance max.	0.0023	Ω/m
	Weight (only conductor, 8.92 g/cm³)	69.515	kg/km
Ø	Conductor min.	3.118	mm
	Conductor max.	3.182	mm
	Enamelled grade 1 min.	3.195	mm
	Enamelled grade 1 max.	3.233	mm
	Enamelled grade 2 min.	3.234	mm
	Enamelled grade 2 max.	3.276	mm

Conductor nominal Ø		3.350	mm
Conductor cross section		8.814	mm²
Aluminium	Resistance min.	0.0031	Ω/m
	Resistance max.	0.0033	Ω/m
	Weight (only conductor, 2.7 g/cm³)	23.798	kg/km
Copper	Resistance min.	0.0019	Ω/m
	Resistance max.	0.0020	Ω/m
	Weight (only conductor, 8.92 g/cm³)	78.622	kg/km
Ø	Conductor min.	3.316	mm
	Conductor max.	3.384	mm
	Enamelled grade 1 min.	3.396	mm
	Enamelled grade 1 max.	3.435	mm
	Enamelled grade 2 min.	3.436	mm
	Enamelled grade 2 max.	3.479	mm

Conductor nominal Ø		3.550	mm
Conductor cross section		9.898	mm²
Aluminium	Resistance min.	0.0027	Ω/m
	Resistance max.	0.0029	Ω/m
	Weight (only conductor, 2.7 g/cm³)	26.725	kg/km
Copper	Resistance min.	0.0017	Ω/m
	Resistance max.	0.0018	Ω/m
	Weight (only conductor, 8.92 g/cm³)	88.290	kg/km
Ø	Conductor min.	3.514	mm
	Conductor max.	3.586	mm
	Enamelled grade 1 min.	3.596	mm
	Enamelled grade 1 max.	3.635	mm
	Enamelled grade 2 min.	3.636	mm
	Enamelled grade 2 max.	3.679	mm

Conductor nominal Ø		3.750	mm
Conductor cross section		11.045	mm²
Aluminium	Resistance min.	0.0025	Ω/m
	Resistance max.	0.0026	Ω/m
	Weight (only conductor, 2.7 g/cm³)	29.821	kg/km
Copper	Resistance min.	0.0015	Ω/m
	Resistance max.	0.0016	Ω/m
	Weight (only conductor, 8.92 g/cm³)	98.518	kg/km
Ø	Conductor min.	3.712	mm
	Conductor max.	3.788	mm
	Enamelled grade 1 min.	3.797	mm
	Enamelled grade 1 max.	3.838	mm
	Enamelled grade 2 min.	3.839	mm
	Enamelled grade 2 max.	3.883	mm

Conductor nominal Ø		4.000	mm
Conductor cross section		12.566	mm²
Aluminium	Resistance min.	0.0022	Ω/m
	Resistance max.	0.0023	Ω/m
	Weight (only conductor, 2.7 g/cm³)	33.929	kg/km
Copper	Resistance min.	0.0013	Ω/m
	Resistance max.	0.0014	Ω/m
	Weight (only conductor, 8.92 g/cm³)	112.092	kg/km
Ø	Conductor min.	3.960	mm
	Conductor max.	4.040	mm
	Enamelled grade 1 min.	4.047	mm
	Enamelled grade 1 max.	4.088	mm
	Enamelled grade 2 min.	4.089	mm
	Enamelled grade 2 max.	4.133	mm

Conductor nominal Ø		4.250	mm
Conductor cross section		14.186	mm²
Aluminium	Resistance min.	0.0019	Ω/m
	Resistance max.	0.0020	Ω/m
	Weight (only conductor, 2.7 g/cm³)	38.303	kg/km
Copper	Resistance min.	0.0012	Ω/m
	Resistance max.	0.0012	Ω/m
	Weight (only conductor, 8.92 g/cm³)	126.541	kg/km
Ø	Conductor min.	4.207	mm
	Conductor max.	4.293	mm
	Enamelled grade 1 min.	4.299	mm
	Enamelled grade 1 max.	4.341	mm
	Enamelled grade 2 min.	4.342	mm
	Enamelled grade 2 max.	4.387	mm

Conductor nominal Ø		4.500	mm
Conductor cross section		15.904	mm²
Aluminium	Resistance min.	0.0017	Ω/m
	Resistance max.	0.0018	Ω/m
	Weight (only conductor, 2.7 g/cm³)	42.942	kg/km
Copper	Resistance min.	0.0010	Ω/m
	Resistance max.	0.0011	Ω/m
	Weight (only conductor, 8.92 g/cm³)	141.866	kg/km
Ø	Conductor min.	4.455	mm
	Conductor max.	4.545	mm
	Enamelled grade 1 min.	4.549	mm
	Enamelled grade 1 max.	4.591	mm
	Enamelled grade 2 min.	4.592	mm
	Enamelled grade 2 max.	4.637	mm

Conductor nominal Ø		4.750	mm
Conductor cross section		17.721	mm²
Aluminium	Resistance min.	0.0015	Ω/m
	Resistance max.	0.0016	Ω/m
	Weight (only conductor, 2.7 g/cm³)	47.845	kg/km
Copper	Resistance min.	0.0009	Ω/m
	Resistance max.	0.0010	Ω/m
	Weight (only conductor, 8.92 g/cm³)	158.067	kg/km
Ø	Conductor min.	4.702	mm
	Conductor max.	4.798	mm
	Enamelled grade 1 min.	4.800	mm
	Enamelled grade 1 max.	4.843	mm
	Enamelled grade 2 min.	4.844	mm
	Enamelled grade 2 max.	4.891	mm

Conductor nominal Ø		5.000	mm
Conductor cross section		19.635	mm²
Aluminium	Resistance min.	0.0014	Ω/m
	Resistance max.	0.0015	Ω/m
	Weight (only conductor, 2.7 g/cm³)	53.014	kg/km
Copper	Resistance min.	0.0008	Ω/m
	Resistance max.	0.0009	Ω/m
	Weight (only conductor, 8.92 g/cm³)	175.144	kg/km
Ø	Conductor min.	4.950	mm
	Conductor max.	5.050	mm
	Enamelled grade 1 min.	5.050	mm
	Enamelled grade 1 max.	5.093	mm
	Enamelled grade 2 min.	5.094	mm
	Enamelled grade 2 max.	5.141	mm
