SHWire
Enamelled wires directly from the producer
As a recognized quality market leader in the production of enamelled wires, we offer you quality enamelled copper and aluminium wires at the largest and most modern single site in Europe. Benefit from our patented system for seamless monitoring of production processes that guarantees the quality of our enamelled wires.
Enamelled wire is in demand worldwide by the winding and electrical industries and is becoming increasingly important. You will find our enamelled wires in the most diverse applications – whether electric motors, generators or transformers. Our enamelled wires plays an essential role especially for the future topics of e-mobility, grid infrastructure and renewable energies. The electrification of society is impossible without enamelled wires.
![[Translate to Englisch:] Kupferlackdraht](/fileadmin/_processed_/e/e/csm_SHWire_Gruppe_7c6dd27070.png)

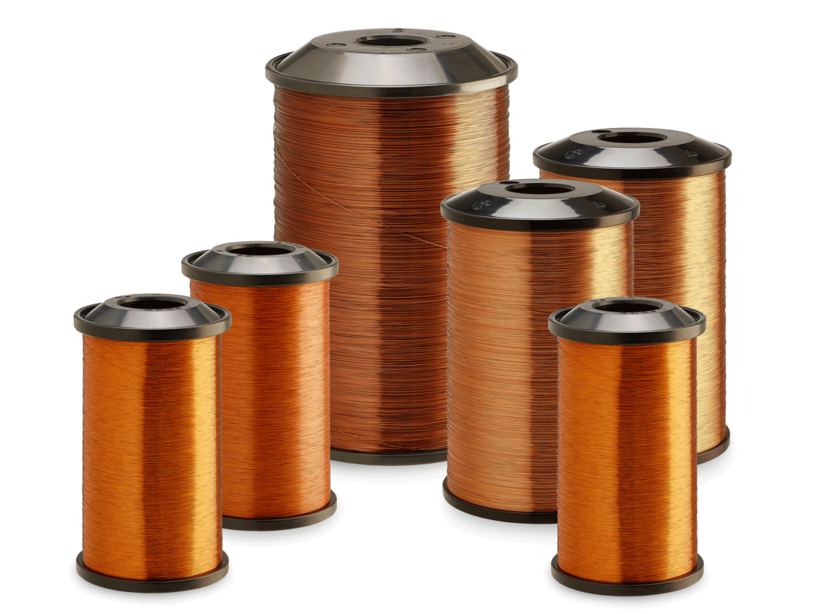

Our product range
SHSold® Series
Enamelled copper wire, solderable
SHTherm® Series
Enamelled wire,
highly thermo resistant
SHXLife®
Enamelled copper wire,
for 800V+
SHBond® Series
Self-bonding copper wire
SHBare® Series
copper wire blank
Special enamelled wires from our own production

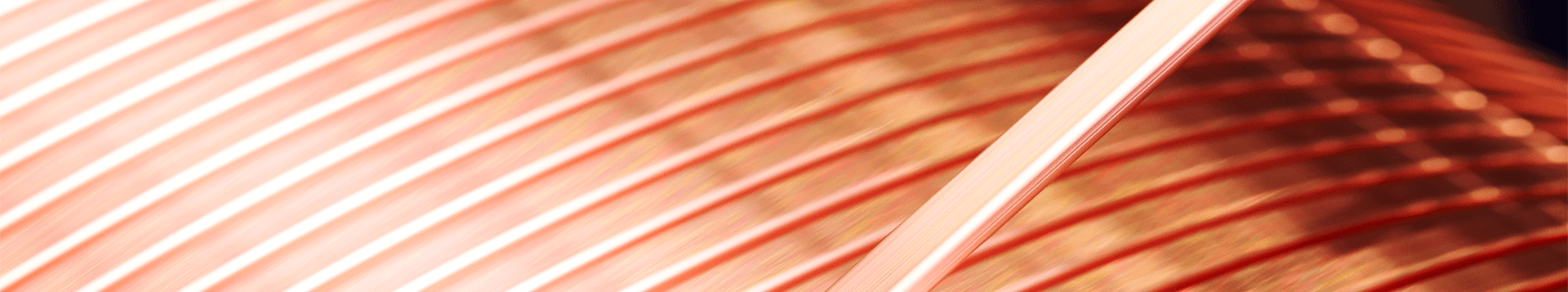

Our product range includes round and flat enamelled wires made of copper and aluminium. We offer round wires with diameters from 0.050 mm up to 4.500 mm, flat wires with cross sections from 1.5 mm² up to 100 mm².
Our standard range also includes enamelled wires with special coatings, such as our self-bonding wires and self-lubricating wires SHGlide. For applications in transformers or generators we manufacture braided and covered wires according to your specific requirements.
Self-bonding wires
On top of the outer layer, self-bonding wires have an extra layer of self-bonding varnish on basis of polyamide that is activated by heat or solvent and thus has an adhesive effect. This way impregnants or potting compounds are no longer necessary and can be saved. Self-bonding varnish increases the mechanical and thermal stability and the resistance to chemicals.
Our standard range includes the following self-bonding wires:
Self-lubricating wires

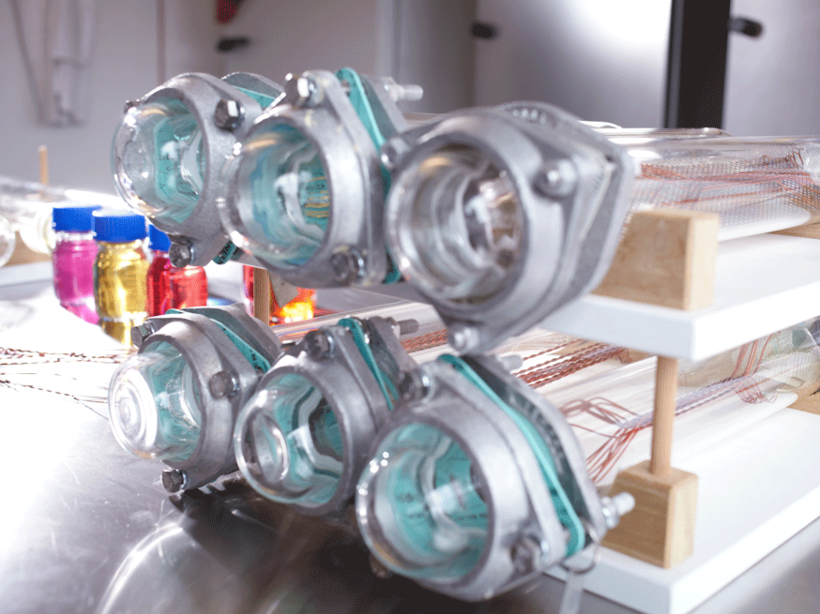

In our research and development department, we are always working on innovative products to optimize our enamelled wires – for improved handling in your processes. So we have developed a wire for gentler processing which has a low-friction functional top coating, thereby enabling excellent winding of the enamelled wires. It results in less equipment contamination and less mechanical stress affecting the wire during the winding process. Decreased friction additionally has a demonstrably positive effect on the insulation ability of the enamel coating. Furthermore, the filling factor of your application will rise since winding wires are perfectly distributed and the application of paraffin can be omitted.
We offer the following self-lubricating enamelled wires as standard:
Get in contact
Find out more about our high-quality enamelled wires and our quality standards. Contact us today for personalized advice and a non-binding quote.
Jan Oderwald
Head of sales
+49-5281-988-125j.oderwald@sh-wire.de
Many years of know-how as a producer of enamelled wires
Benefit from our expertise as a long-standing producer of enamelled wires. At the largest and most modern single location in Europe, we offer you enamelled wires of best quality. We continuously invest in our state-of-the-art machinery and work in our research and development department on innovations that will inspire you and improve your processes.
Every day, we produce more than 160,000 km of enamelled wires on horizontal and vertical machines, using the latest production monitoring technologies to guarantee you the desired quality. Our coating machines can apply up to 32 layers and 4 different types of varnish to the wire.
Individual enamelled wires matching your requirements
As a producer of enamelled copper or aluminium wires, we can perfectly respond to your project-specific requirements and make relevant adjustments.
For acceptable volumes, we produce enamelled wires with your project-specific adaptations. Choose from all wire types in our range. The production of the wires takes place in close coordination between sales department, application technology and you. In this way, we jointly achieve the best possible results for your requirements.

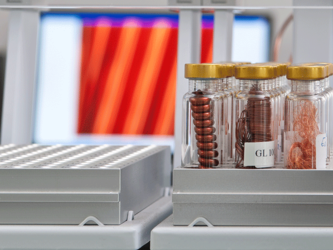

Monitoring the enamelled wire production and Industry 4.0
We offer you the best quality enamelled wires and safeguard the quality by means of our patented monitoring system throughout the entire production process. We permanently record and control all operating and machine data of each machine and production line fully automatically throughout the entire process. This is the only way to ensure that all quality-relevant process and production parameters are completely measured, controlled, documented and stored. If problems arise during operation, we detect them immediately and intervene to regulate them.
In doing so, we are taking another step towards Industry 4.0 - and you are guaranteed to receive your enamelled wires in the highest quality.
Digital magnet wire slide rule
With the digital magnet wire slide rule we have brought the well-known and popular handy tool from the desk to the desktop. Simply enter the desired nominal wire diameter via the input field or use the slider. At a glance you will find useful information on enamelled copper and aluminium wires based on IEC 60317-0-1.
- 0.030 mm
- 0.040 mm
- 0.045 mm
- 0.050 mm
- 0.053 mm
- 0.056 mm
- 0.060 mm
- 0.063 mm
- 0.067 mm
- 0.071 mm
- 0.075 mm
- 0.080 mm
- 0.085 mm
- 0.090 mm
- 0.095 mm
- 0.100 mm
- 0.106 mm
- 0.112 mm
- 0.118 mm
- 0.125 mm
- 0.132 mm
- 0.140 mm
- 0.150 mm
- 0.160 mm
- 0.170 mm
- 0.180 mm
- 0.190 mm
- 0.200 mm
- 0.212 mm
- 0.224 mm
- 0.236 mm
- 0.250 mm
- 0.265 mm
- 0.280 mm
- 0.300 mm
- 0.315 mm
- 0.335 mm
- 0.355 mm
- 0.375 mm
- 0.400 mm
- 0.425 mm
- 0.450 mm
- 0.475 mm
- 0.500 mm
- 0.530 mm
- 0.560 mm
- 0.600 mm
- 0.630 mm
- 0.670 mm
- 0.710 mm
- 0.750 mm
- 0.800 mm
- 0.850 mm
- 0.900 mm
- 0.950 mm
- 1.000 mm
- 1.060 mm
- 1.120 mm
- 1.180 mm
- 1.250 mm
- 1.320 mm
- 1.400 mm
- 1.500 mm
- 1.600 mm
- 1.700 mm
- 1.800 mm
- 1.900 mm
- 2.000 mm
- 2.120 mm
- 2.240 mm
- 2.360 mm
- 2.500 mm
- 2.650 mm
- 2.800 mm
- 3.000 mm
- 3.150 mm
- 3.350 mm
- 3.550 mm
- 3.750 mm
- 4.000 mm
- 4.250 mm
- 4.500 mm
- 4.750 mm
- 5.000 mm
| Conductor nominal Ø | 0.030 | mm | |
| Conductor cross section | 0.001 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.002 | kg/km | |
| Copper | Resistance min. | 21.765 | Ω/m |
| Resistance max. | 26.601 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.006 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.033 | mm | |
| Enamelled grade 1 max. | 0.037 | mm | |
| Enamelled grade 2 min. | 0.038 | mm | |
| Enamelled grade 2 max. | 0.041 | mm | |
| Conductor nominal Ø | 0.040 | mm | |
| Conductor cross section | 0.001 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.003 | kg/km | |
| Copper | Resistance min. | 12.379 | Ω/m |
| Resistance max. | 14.827 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.011 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.044 | mm | |
| Enamelled grade 1 max. | 0.049 | mm | |
| Enamelled grade 2 min. | 0.050 | mm | |
| Enamelled grade 2 max. | 0.054 | mm | |
| Conductor nominal Ø | 0.045 | mm | |
| Conductor cross section | 0.002 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.004 | kg/km | |
| Copper | Resistance min. | 9.781 | Ω/m |
| Resistance max. | 11.715 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.014 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.050 | mm | |
| Enamelled grade 1 max. | 0.055 | mm | |
| Enamelled grade 2 min. | 0.056 | mm | |
| Enamelled grade 2 max. | 0.061 | mm | |
| Conductor nominal Ø | 0.050 | mm | |
| Conductor cross section | 0.002 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.005 | kg/km | |
| Copper | Resistance min. | 7.9224 | Ω/m |
| Resistance max. | 9.4894 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.018 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.055 | mm | |
| Enamelled grade 1 max. | 0.060 | mm | |
| Enamelled grade 2 min. | 0.061 | mm | |
| Enamelled grade 2 max. | 0.066 | mm | |
| Conductor nominal Ø | 0.053 | mm | |
| Conductor cross section | 0.002 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.006 | kg/km | |
| Copper | Resistance min. | 7.0509 | Ω/m |
| Resistance max. | 8.4456 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.020 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.059 | mm | |
| Enamelled grade 1 max. | 0.064 | mm | |
| Enamelled grade 2 min. | 0.065 | mm | |
| Enamelled grade 2 max. | 0.070 | mm | |
| Conductor nominal Ø | 0.056 | mm | |
| Conductor cross section | 0.002 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.007 | kg/km | |
| Copper | Resistance min. | 6.3157 | Ω/m |
| Resistance max. | 7.5649 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.022 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.062 | mm | |
| Enamelled grade 1 max. | 0.067 | mm | |
| Enamelled grade 2 min. | 0.068 | mm | |
| Enamelled grade 2 max. | 0.074 | mm | |
| Conductor nominal Ø | 0.060 | mm | |
| Conductor cross section | 0.003 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.008 | kg/km | |
| Copper | Resistance min. | 5.5017 | Ω/m |
| Resistance max. | 6.5899 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.025 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.066 | mm | |
| Enamelled grade 1 max. | 0.072 | mm | |
| Enamelled grade 2 min. | 0.073 | mm | |
| Enamelled grade 2 max. | 0.079 | mm | |
| Conductor nominal Ø | 0.063 | mm | |
| Conductor cross section | 0.003 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.008 | kg/km | |
| Copper | Resistance min. | 4.9902 | Ω/m |
| Resistance max. | 5.9772 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.028 | kg/km | |
| Ø | Conductor min. | - | mm |
| Conductor max. | - | mm | |
| Enamelled grade 1 min. | 0.069 | mm | |
| Enamelled grade 1 max. | 0.076 | mm | |
| Enamelled grade 2 min. | 0.077 | mm | |
| Enamelled grade 2 max. | 0.083 | mm | |
| Conductor nominal Ø | 0.067 | mm | |
| Conductor cross section | 0.004 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.010 | kg/km | |
| Copper | Resistance min. | 4.4121 | Ω/m |
| Resistance max. | 5.2848 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.031 | kg/km | |
| Ø | Conductor min. | 0.064 | mm |
| Conductor max. | 0.070 | mm | |
| Enamelled grade 1 min. | 0.074 | mm | |
| Enamelled grade 1 max. | 0.080 | mm | |
| Enamelled grade 2 min. | 0.081 | mm | |
| Enamelled grade 2 max. | 0.088 | mm | |
| Conductor nominal Ø | 0.071 | mm | |
| Conductor cross section | 0.004 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.011 | kg/km | |
| Copper | Resistance min. | 3.9290 | Ω/m |
| Resistance max. | 4.7061 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.035 | kg/km | |
| Ø | Conductor min. | 0.068 | mm |
| Conductor max. | 0.074 | mm | |
| Enamelled grade 1 min. | 0.078 | mm | |
| Enamelled grade 1 max. | 0.084 | mm | |
| Enamelled grade 2 min. | 0.085 | mm | |
| Enamelled grade 2 max. | 0.091 | mm | |
| Conductor nominal Ø | 0.075 | mm | |
| Conductor cross section | 0.004 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.012 | kg/km | |
| Copper | Resistance min. | 3.5471 | Ω/m |
| Resistance max. | 4.2346 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.039 | kg/km | |
| Ø | Conductor min. | 0.072 | mm |
| Conductor max. | 0.078 | mm | |
| Enamelled grade 1 min. | 0.082 | mm | |
| Enamelled grade 1 max. | 0.089 | mm | |
| Enamelled grade 2 min. | 0.090 | mm | |
| Enamelled grade 2 max. | 0.095 | mm | |
| Conductor nominal Ø | 0.080 | mm | |
| Conductor cross section | 0.005 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.014 | kg/km | |
| Copper | Resistance min. | 3.1326 | Ω/m |
| Resistance max. | 3.7025 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.045 | kg/km | |
| Ø | Conductor min. | 0.077 | mm |
| Conductor max. | 0.083 | mm | |
| Enamelled grade 1 min. | 0.087 | mm | |
| Enamelled grade 1 max. | 0.094 | mm | |
| Enamelled grade 2 min. | 0.095 | mm | |
| Enamelled grade 2 max. | 0.101 | mm | |
| Conductor nominal Ø | 0.085 | mm | |
| Conductor cross section | 0.006 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.015 | kg/km | |
| Copper | Resistance min. | 2.7867 | Ω/m |
| Resistance max. | 3.2648 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.051 | kg/km | |
| Ø | Conductor min. | 0.082 | mm |
| Conductor max. | 0.088 | mm | |
| Enamelled grade 1 min. | 0.093 | mm | |
| Enamelled grade 1 max. | 0.100 | mm | |
| Enamelled grade 2 min. | 0.101 | mm | |
| Enamelled grade 2 max. | 0.107 | mm | |
| Conductor nominal Ø | 0.090 | mm | |
| Conductor cross section | 0.006 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.017 | kg/km | |
| Copper | Resistance min. | 2.4951 | Ω/m |
| Resistance max. | 2.9003 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.057 | kg/km | |
| Ø | Conductor min. | 0.087 | mm |
| Conductor max. | 0.093 | mm | |
| Enamelled grade 1 min. | 0.098 | mm | |
| Enamelled grade 1 max. | 0.105 | mm | |
| Enamelled grade 2 min. | 0.106 | mm | |
| Enamelled grade 2 max. | 0.113 | mm | |
| Conductor nominal Ø | 0.095 | mm | |
| Conductor cross section | 0.007 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.019 | kg/km | |
| Copper | Resistance min. | 2.2470 | Ω/m |
| Resistance max. | 2.5936 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.063 | kg/km | |
| Ø | Conductor min. | 0.092 | mm |
| Conductor max. | 0.098 | mm | |
| Enamelled grade 1 min. | 0.103 | mm | |
| Enamelled grade 1 max. | 0.111 | mm | |
| Enamelled grade 2 min. | 0.112 | mm | |
| Enamelled grade 2 max. | 0.119 | mm | |
| Conductor nominal Ø | 0.100 | mm | |
| Conductor cross section | 0.008 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.021 | kg/km | |
| Copper | Resistance min. | 2.0342 | Ω/m |
| Resistance max. | 2.3331 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.070 | kg/km | |
| Ø | Conductor min. | 0.097 | mm |
| Conductor max. | 0.103 | mm | |
| Enamelled grade 1 min. | 0.108 | mm | |
| Enamelled grade 1 max. | 0.117 | mm | |
| Enamelled grade 2 min. | 0.118 | mm | |
| Enamelled grade 2 max. | 0.125 | mm | |
| Conductor nominal Ø | 0.106 | mm | |
| Conductor cross section | 0.009 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.024 | kg/km | |
| Copper | Resistance min. | 1.8164 | Ω/m |
| Resistance max. | 2.0692 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.079 | kg/km | |
| Ø | Conductor min. | 0.103 | mm |
| Conductor max. | 0.109 | mm | |
| Enamelled grade 1 min. | 0.115 | mm | |
| Enamelled grade 1 max. | 0.123 | mm | |
| Enamelled grade 2 min. | 0.124 | mm | |
| Enamelled grade 2 max. | 0.132 | mm | |
| Conductor nominal Ø | 0.112 | mm | |
| Conductor cross section | 0.010 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.027 | kg/km | |
| Copper | Resistance min. | 1.6318 | Ω/m |
| Resistance max. | 1.8407 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.088 | kg/km | |
| Ø | Conductor min. | 0.109 | mm |
| Conductor max. | 0.115 | mm | |
| Enamelled grade 1 min. | 0.121 | mm | |
| Enamelled grade 1 max. | 0.130 | mm | |
| Enamelled grade 2 min. | 0.131 | mm | |
| Enamelled grade 2 max. | 0.139 | mm | |
| Conductor nominal Ø | 0.118 | mm | |
| Conductor cross section | 0.011 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.030 | kg/km | |
| Copper | Resistance min. | 1.4740 | Ω/m |
| Resistance max. | 1.6599 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.098 | kg/km | |
| Ø | Conductor min. | 0.115 | mm |
| Conductor max. | 0.121 | mm | |
| Enamelled grade 1 min. | 0.128 | mm | |
| Enamelled grade 1 max. | 0.136 | mm | |
| Enamelled grade 2 min. | 0.137 | mm | |
| Enamelled grade 2 max. | 0.145 | mm | |
| Conductor nominal Ø | 0.125 | mm | |
| Conductor cross section | 0.012 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.033 | kg/km | |
| Copper | Resistance min. | 1.3172 | Ω/m |
| Resistance max. | 1.4749 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.109 | kg/km | |
| Ø | Conductor min. | 0.122 | mm |
| Conductor max. | 0.128 | mm | |
| Enamelled grade 1 min. | 0.135 | mm | |
| Enamelled grade 1 max. | 0.144 | mm | |
| Enamelled grade 2 min. | 0.145 | mm | |
| Enamelled grade 2 max. | 0.154 | mm | |
| Conductor nominal Ø | 0.132 | mm | |
| Conductor cross section | 0.014 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.037 | kg/km | |
| Copper | Resistance min. | 1.1841 | Ω/m |
| Resistance max. | 1.3192 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.122 | kg/km | |
| Ø | Conductor min. | 0.129 | mm |
| Conductor max. | 0.135 | mm | |
| Enamelled grade 1 min. | 0.143 | mm | |
| Enamelled grade 1 max. | 0.152 | mm | |
| Enamelled grade 2 min. | 0.153 | mm | |
| Enamelled grade 2 max. | 0.162 | mm | |
| Conductor nominal Ø | 0.140 | mm | |
| Conductor cross section | 0.015 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.042 | kg/km | |
| Copper | Resistance min. | 1.0553 | Ω/m |
| Resistance max. | 1.1696 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.137 | kg/km | |
| Ø | Conductor min. | 0.137 | mm |
| Conductor max. | 0.143 | mm | |
| Enamelled grade 1 min. | 0.151 | mm | |
| Enamelled grade 1 max. | 0.160 | mm | |
| Enamelled grade 2 min. | 0.161 | mm | |
| Enamelled grade 2 max. | 0.171 | mm | |
| Conductor nominal Ø | 0.150 | mm | |
| Conductor cross section | 0.018 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.048 | kg/km | |
| Copper | Resistance min. | 0.9219 | Ω/m |
| Resistance max. | 1.0159 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.158 | kg/km | |
| Ø | Conductor min. | 0.147 | mm |
| Conductor max. | 0.153 | mm | |
| Enamelled grade 1 min. | 0.162 | mm | |
| Enamelled grade 1 max. | 0.171 | mm | |
| Enamelled grade 2 min. | 0.172 | mm | |
| Enamelled grade 2 max. | 0.182 | mm | |
| Conductor nominal Ø | 0.160 | mm | |
| Conductor cross section | 0.020 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.054 | kg/km | |
| Copper | Resistance min. | 0.8122 | Ω/m |
| Resistance max. | 0.8906 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.179 | kg/km | |
| Ø | Conductor min. | 0.157 | mm |
| Conductor max. | 0.163 | mm | |
| Enamelled grade 1 min. | 0.172 | mm | |
| Enamelled grade 1 max. | 0.182 | mm | |
| Enamelled grade 2 min. | 0.183 | mm | |
| Enamelled grade 2 max. | 0.194 | mm | |
| Conductor nominal Ø | 0.170 | mm | |
| Conductor cross section | 0.023 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.061 | kg/km | |
| Copper | Resistance min. | 0.7211 | Ω/m |
| Resistance max. | 0.7871 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.202 | kg/km | |
| Ø | Conductor min. | 0.167 | mm |
| Conductor max. | 0.173 | mm | |
| Enamelled grade 1 min. | 0.183 | mm | |
| Enamelled grade 1 max. | 0.194 | mm | |
| Enamelled grade 2 min. | 0.195 | mm | |
| Enamelled grade 2 max. | 0.205 | mm | |
| Conductor nominal Ø | 0.180 | mm | |
| Conductor cross section | 0.025 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.069 | kg/km | |
| Copper | Resistance min. | 0.6444 | Ω/m |
| Resistance max. | 0.7007 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.227 | kg/km | |
| Ø | Conductor min. | 0.177 | mm |
| Conductor max. | 0.183 | mm | |
| Enamelled grade 1 min. | 0.193 | mm | |
| Enamelled grade 1 max. | 0.204 | mm | |
| Enamelled grade 2 min. | 0.205 | mm | |
| Enamelled grade 2 max. | 0.217 | mm | |
| Conductor nominal Ø | 0.190 | mm | |
| Conductor cross section | 0.028 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.077 | kg/km | |
| Copper | Resistance min. | 0.5794 | Ω/m |
| Resistance max. | 0.6278 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.253 | kg/km | |
| Ø | Conductor min. | 0.187 | mm |
| Conductor max. | 0.193 | mm | |
| Enamelled grade 1 min. | 0.204 | mm | |
| Enamelled grade 1 max. | 0.216 | mm | |
| Enamelled grade 2 min. | 0.217 | mm | |
| Enamelled grade 2 max. | 0.228 | mm | |
| Conductor nominal Ø | 0.200 | mm | |
| Conductor cross section | 0.031 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.085 | kg/km | |
| Copper | Resistance min. | 0.5237 | Ω/m |
| Resistance max. | 0.5657 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.280 | kg/km | |
| Ø | Conductor min. | 0.197 | mm |
| Conductor max. | 0.203 | mm | |
| Enamelled grade 1 min. | 0.214 | mm | |
| Enamelled grade 1 max. | 0.226 | mm | |
| Enamelled grade 2 min. | 0.227 | mm | |
| Enamelled grade 2 max. | 0.239 | mm | |
| Conductor nominal Ø | 0.212 | mm | |
| Conductor cross section | 0.035 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.095 | kg/km | |
| Copper | Resistance min. | 0.4669 | Ω/m |
| Resistance max. | 0.5026 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.315 | kg/km | |
| Ø | Conductor min. | 0.209 | mm |
| Conductor max. | 0.215 | mm | |
| Enamelled grade 1 min. | 0.227 | mm | |
| Enamelled grade 1 max. | 0.240 | mm | |
| Enamelled grade 2 min. | 0.241 | mm | |
| Enamelled grade 2 max. | 0.254 | mm | |
| Conductor nominal Ø | 0.224 | mm | |
| Conductor cross section | 0.039 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.106 | kg/km | |
| Copper | Resistance min. | 0.4188 | Ω/m |
| Resistance max. | 0.4495 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.352 | kg/km | |
| Ø | Conductor min. | 0.221 | mm |
| Conductor max. | 0.227 | mm | |
| Enamelled grade 1 min. | 0.239 | mm | |
| Enamelled grade 1 max. | 0.252 | mm | |
| Enamelled grade 2 min. | 0.253 | mm | |
| Enamelled grade 2 max. | 0.266 | mm | |
| Conductor nominal Ø | 0.236 | mm | |
| Conductor cross section | 0.044 | mm² | |
| Aluminium | Resistance min. | - | Ω/m |
| Resistance max. | - | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.118 | kg/km | |
| Copper | Resistance min. | 0.3747 | Ω/m |
| Resistance max. | 0.4079 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.390 | kg/km | |
| Ø | Conductor min. | 0.232 | mm |
| Conductor max. | 0.240 | mm | |
| Enamelled grade 1 min. | 0.253 | mm | |
| Enamelled grade 1 max. | 0.267 | mm | |
| Enamelled grade 2 min. | 0.268 | mm | |
| Enamelled grade 2 max. | 0.283 | mm | |
| Conductor nominal Ø | 0.250 | mm | |
| Conductor cross section | 0.049 | mm² | |
| Aluminium | Resistance min. | 0.5452 | Ω/m |
| Resistance max. | 0.5927 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.133 | kg/km | |
| Copper | Resistance min. | 0.3345 | Ω/m |
| Resistance max. | 0.3628 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.438 | kg/km | |
| Ø | Conductor min. | 0.246 | mm |
| Conductor max. | 0.254 | mm | |
| Enamelled grade 1 min. | 0.267 | mm | |
| Enamelled grade 1 max. | 0.281 | mm | |
| Enamelled grade 2 min. | 0.282 | mm | |
| Enamelled grade 2 max. | 0.297 | mm | |
| Conductor nominal Ø | 0.265 | mm | |
| Conductor cross section | 0.055 | mm² | |
| Aluminium | Resistance min. | 0.4861 | Ω/m |
| Resistance max. | 0.5265 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.149 | kg/km | |
| Copper | Resistance min. | 0.2982 | Ω/m |
| Resistance max. | 0.3223 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.492 | kg/km | |
| Ø | Conductor min. | 0.261 | mm |
| Conductor max. | 0.269 | mm | |
| Enamelled grade 1 min. | 0.283 | mm | |
| Enamelled grade 1 max. | 0.297 | mm | |
| Enamelled grade 2 min. | 0.298 | mm | |
| Enamelled grade 2 max. | 0.314 | mm | |
| Conductor nominal Ø | 0.280 | mm | |
| Conductor cross section | 0.062 | mm² | |
| Aluminium | Resistance min. | 0.4361 | Ω/m |
| Resistance max. | 0.4708 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.166 | kg/km | |
| Copper | Resistance min. | 0.2676 | Ω/m |
| Resistance max. | 0.2882 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.549 | kg/km | |
| Ø | Conductor min. | 0.276 | mm |
| Conductor max. | 0.284 | mm | |
| Enamelled grade 1 min. | 0.298 | mm | |
| Enamelled grade 1 max. | 0.312 | mm | |
| Enamelled grade 2 min. | 0.313 | mm | |
| Enamelled grade 2 max. | 0.329 | mm | |
| Conductor nominal Ø | 0.300 | mm | |
| Conductor cross section | 0.071 | mm² | |
| Aluminium | Resistance min. | 0.3806 | Ω/m |
| Resistance max. | 0.4094 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.191 | kg/km | |
| Copper | Resistance min. | 0.2335 | Ω/m |
| Resistance max. | 0.2506 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.631 | kg/km | |
| Ø | Conductor min. | 0.296 | mm |
| Conductor max. | 0.304 | mm | |
| Enamelled grade 1 min. | 0.319 | mm | |
| Enamelled grade 1 max. | 0.334 | mm | |
| Enamelled grade 2 min. | 0.335 | mm | |
| Enamelled grade 2 max. | 0.352 | mm | |
| Conductor nominal Ø | 0.315 | mm | |
| Conductor cross section | 0.078 | mm² | |
| Aluminium | Resistance min. | 0.3456 | Ω/m |
| Resistance max. | 0.3708 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.210 | kg/km | |
| Copper | Resistance min. | 0.2121 | Ω/m |
| Resistance max. | 0.2270 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.695 | kg/km | |
| Ø | Conductor min. | 0.311 | mm |
| Conductor max. | 0.319 | mm | |
| Enamelled grade 1 min. | 0.334 | mm | |
| Enamelled grade 1 max. | 0.349 | mm | |
| Enamelled grade 2 min. | 0.350 | mm | |
| Enamelled grade 2 max. | 0.367 | mm | |
| Conductor nominal Ø | 0.335 | mm | |
| Conductor cross section | 0.088 | mm² | |
| Aluminium | Resistance min. | 0.3061 | Ω/m |
| Resistance max. | 0.3274 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.238 | kg/km | |
| Copper | Resistance min. | 0.1878 | Ω/m |
| Resistance max. | 0.2004 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.786 | kg/km | |
| Ø | Conductor min. | 0.331 | mm |
| Conductor max. | 0.339 | mm | |
| Enamelled grade 1 min. | 0.355 | mm | |
| Enamelled grade 1 max. | 0.372 | mm | |
| Enamelled grade 2 min. | 0.373 | mm | |
| Enamelled grade 2 max. | 0.391 | mm | |
| Conductor nominal Ø | 0.355 | mm | |
| Conductor cross section | 0.099 | mm² | |
| Aluminium | Resistance min. | 0.2729 | Ω/m |
| Resistance max. | 0.2911 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.267 | kg/km | |
| Copper | Resistance min. | 0.1674 | Ω/m |
| Resistance max. | 0.1782 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.883 | kg/km | |
| Ø | Conductor min. | 0.351 | mm |
| Conductor max. | 0.359 | mm | |
| Enamelled grade 1 min. | 0.375 | mm | |
| Enamelled grade 1 max. | 0.392 | mm | |
| Enamelled grade 2 min. | 0.393 | mm | |
| Enamelled grade 2 max. | 0.411 | mm | |
| Conductor nominal Ø | 0.375 | mm | |
| Conductor cross section | 0.110 | mm² | |
| Aluminium | Resistance min. | 0.2436 | Ω/m |
| Resistance max. | 0.2620 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.298 | kg/km | |
| Copper | Resistance min. | 0.1495 | Ω/m |
| Resistance max. | 0.1604 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 0.985 | kg/km | |
| Ø | Conductor min. | 0.370 | mm |
| Conductor max. | 0.380 | mm | |
| Enamelled grade 1 min. | 0.396 | mm | |
| Enamelled grade 1 max. | 0.414 | mm | |
| Enamelled grade 2 min. | 0.415 | mm | |
| Enamelled grade 2 max. | 0.434 | mm | |
| Conductor nominal Ø | 0.400 | mm | |
| Conductor cross section | 0.126 | mm² | |
| Aluminium | Resistance min. | 0.2144 | Ω/m |
| Resistance max. | 0.2299 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.339 | kg/km | |
| Copper | Resistance min. | 0.1316 | Ω/m |
| Resistance max. | 0.1407 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.121 | kg/km | |
| Ø | Conductor min. | 0.395 | mm |
| Conductor max. | 0.405 | mm | |
| Enamelled grade 1 min. | 0.421 | mm | |
| Enamelled grade 1 max. | 0.439 | mm | |
| Enamelled grade 2 min. | 0.440 | mm | |
| Enamelled grade 2 max. | 0.459 | mm | |
| Conductor nominal Ø | 0.425 | mm | |
| Conductor cross section | 0.142 | mm² | |
| Aluminium | Resistance min. | 0.1902 | Ω/m |
| Resistance max. | 0.2033 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.383 | kg/km | |
| Copper | Resistance min. | 0.1167 | Ω/m |
| Resistance max. | 0.1245 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.265 | kg/km | |
| Ø | Conductor min. | 0.420 | mm |
| Conductor max. | 0.430 | mm | |
| Enamelled grade 1 min. | 0.447 | mm | |
| Enamelled grade 1 max. | 0.466 | mm | |
| Enamelled grade 2 min. | 0.467 | mm | |
| Enamelled grade 2 max. | 0.488 | mm | |
| Conductor nominal Ø | 0.450 | mm | |
| Conductor cross section | 0.159 | mm² | |
| Aluminium | Resistance min. | 0.1699 | Ω/m |
| Resistance max. | 0.1811 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.429 | kg/km | |
| Copper | Resistance min. | 0.1042 | Ω/m |
| Resistance max. | 0.1109 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.419 | kg/km | |
| Ø | Conductor min. | 0.445 | mm |
| Conductor max. | 0.455 | mm | |
| Enamelled grade 1 min. | 0.472 | mm | |
| Enamelled grade 1 max. | 0.491 | mm | |
| Enamelled grade 2 min. | 0.492 | mm | |
| Enamelled grade 2 max. | 0.513 | mm | |
| Conductor nominal Ø | 0.475 | mm | |
| Conductor cross section | 0.177 | mm² | |
| Aluminium | Resistance min. | 0.1527 | Ω/m |
| Resistance max. | 0.1624 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.478 | kg/km | |
| Copper | Resistance min. | 0.0937 | Ω/m |
| Resistance max. | 0.0994 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.581 | kg/km | |
| Ø | Conductor min. | 0.470 | mm |
| Conductor max. | 0.480 | mm | |
| Enamelled grade 1 min. | 0.499 | mm | |
| Enamelled grade 1 max. | 0.519 | mm | |
| Enamelled grade 2 min. | 0.520 | mm | |
| Enamelled grade 2 max. | 0.541 | mm | |
| Conductor nominal Ø | 0.500 | mm | |
| Conductor cross section | 0.196 | mm² | |
| Aluminium | Resistance min. | 0.1379 | Ω/m |
| Resistance max. | 0.1464 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.530 | kg/km | |
| Copper | Resistance min. | 0.0846 | Ω/m |
| Resistance max. | 0.0896 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.751 | kg/km | |
| Ø | Conductor min. | 0.495 | mm |
| Conductor max. | 0.505 | mm | |
| Enamelled grade 1 min. | 0.524 | mm | |
| Enamelled grade 1 max. | 0.544 | mm | |
| Enamelled grade 2 min. | 0.545 | mm | |
| Enamelled grade 2 max. | 0.566 | mm | |
| Conductor nominal Ø | 0.530 | mm | |
| Conductor cross section | 0.221 | mm² | |
| Aluminium | Resistance min. | 0.1224 | Ω/m |
| Resistance max. | 0.1306 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.596 | kg/km | |
| Copper | Resistance min. | 0.0751 | Ω/m |
| Resistance max. | 0.0800 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 1.968 | kg/km | |
| Ø | Conductor min. | 0.524 | mm |
| Conductor max. | 0.536 | mm | |
| Enamelled grade 1 min. | 0.555 | mm | |
| Enamelled grade 1 max. | 0.576 | mm | |
| Enamelled grade 2 min. | 0.577 | mm | |
| Enamelled grade 2 max. | 0.600 | mm | |
| Conductor nominal Ø | 0.560 | mm | |
| Conductor cross section | 0.246 | mm² | |
| Aluminium | Resistance min. | 0.1098 | Ω/m |
| Resistance max. | 0.1169 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.665 | kg/km | |
| Copper | Resistance min. | 0.0674 | Ω/m |
| Resistance max. | 0.0715 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 2.197 | kg/km | |
| Ø | Conductor min. | 0.554 | mm |
| Conductor max. | 0.566 | mm | |
| Enamelled grade 1 min. | 0.585 | mm | |
| Enamelled grade 1 max. | 0.606 | mm | |
| Enamelled grade 2 min. | 0.607 | mm | |
| Enamelled grade 2 max. | 0.630 | mm | |
| Conductor nominal Ø | 0.600 | mm | |
| Conductor cross section | 0.283 | mm² | |
| Aluminium | Resistance min. | 0.0958 | Ω/m |
| Resistance max. | 0.1017 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.763 | kg/km | |
| Copper | Resistance min. | 0.0588 | Ω/m |
| Resistance max. | 0.0622 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 2.522 | kg/km | |
| Ø | Conductor min. | 0.594 | mm |
| Conductor max. | 0.606 | mm | |
| Enamelled grade 1 min. | 0.627 | mm | |
| Enamelled grade 1 max. | 0.649 | mm | |
| Enamelled grade 2 min. | 0.650 | mm | |
| Enamelled grade 2 max. | 0.674 | mm | |
| Conductor nominal Ø | 0.630 | mm | |
| Conductor cross section | 0.312 | mm² | |
| Aluminium | Resistance min. | 0.0870 | Ω/m |
| Resistance max. | 0.0921 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.842 | kg/km | |
| Copper | Resistance min. | 0.0534 | Ω/m |
| Resistance max. | 0.0564 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 2.781 | kg/km | |
| Ø | Conductor min. | 0.624 | mm |
| Conductor max. | 0.636 | mm | |
| Enamelled grade 1 min. | 0.657 | mm | |
| Enamelled grade 1 max. | 0.679 | mm | |
| Enamelled grade 2 min. | 0.680 | mm | |
| Enamelled grade 2 max. | 0.704 | mm | |
| Conductor nominal Ø | 0.670 | mm | |
| Conductor cross section | 0.353 | mm² | |
| Aluminium | Resistance min. | 0.0767 | Ω/m |
| Resistance max. | 0.0816 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 0.952 | kg/km | |
| Copper | Resistance min. | 0.0471 | Ω/m |
| Resistance max. | 0.0499 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 3.145 | kg/km | |
| Ø | Conductor min. | 0.663 | mm |
| Conductor max. | 0.677 | mm | |
| Enamelled grade 1 min. | 0.698 | mm | |
| Enamelled grade 1 max. | 0.722 | mm | |
| Enamelled grade 2 min. | 0.723 | mm | |
| Enamelled grade 2 max. | 0.749 | mm | |
| Conductor nominal Ø | 0.710 | mm | |
| Conductor cross section | 0.396 | mm² | |
| Aluminium | Resistance min. | 0.0684 | Ω/m |
| Resistance max. | 0.0726 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.069 | kg/km | |
| Copper | Resistance min. | 0.0420 | Ω/m |
| Resistance max. | 0.0444 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 3.532 | kg/km | |
| Ø | Conductor min. | 0.703 | mm |
| Conductor max. | 0.717 | mm | |
| Enamelled grade 1 min. | 0.738 | mm | |
| Enamelled grade 1 max. | 0.762 | mm | |
| Enamelled grade 2 min. | 0.763 | mm | |
| Enamelled grade 2 max. | 0.789 | mm | |
| Conductor nominal Ø | 0.750 | mm | |
| Conductor cross section | 0.442 | mm² | |
| Aluminium | Resistance min. | 0.0612 | Ω/m |
| Resistance max. | 0.0651 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.193 | kg/km | |
| Copper | Resistance min. | 0.0376 | Ω/m |
| Resistance max. | 0.0399 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 3.941 | kg/km | |
| Ø | Conductor min. | 0.742 | mm |
| Conductor max. | 0.758 | mm | |
| Enamelled grade 1 min. | 0.780 | mm | |
| Enamelled grade 1 max. | 0.805 | mm | |
| Enamelled grade 2 min. | 0.806 | mm | |
| Enamelled grade 2 max. | 0.834 | mm | |
| Conductor nominal Ø | 0.800 | mm | |
| Conductor cross section | 0.503 | mm² | |
| Aluminium | Resistance min. | 0.0539 | Ω/m |
| Resistance max. | 0.0572 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.357 | kg/km | |
| Copper | Resistance min. | 0.0331 | Ω/m |
| Resistance max. | 0.0350 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 4.484 | kg/km | |
| Ø | Conductor min. | 0.792 | mm |
| Conductor max. | 0.808 | mm | |
| Enamelled grade 1 min. | 0.830 | mm | |
| Enamelled grade 1 max. | 0.855 | mm | |
| Enamelled grade 2 min. | 0.856 | mm | |
| Enamelled grade 2 max. | 0.884 | mm | |
| Conductor nominal Ø | 0.850 | mm | |
| Conductor cross section | 0.567 | mm² | |
| Aluminium | Resistance min. | 0.0477 | Ω/m |
| Resistance max. | 0.0507 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.532 | kg/km | |
| Copper | Resistance min. | 0.0292 | Ω/m |
| Resistance max. | 0.0310 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 5.062 | kg/km | |
| Ø | Conductor min. | 0.841 | mm |
| Conductor max. | 0.859 | mm | |
| Enamelled grade 1 min. | 0.882 | mm | |
| Enamelled grade 1 max. | 0.909 | mm | |
| Enamelled grade 2 min. | 0.910 | mm | |
| Enamelled grade 2 max. | 0.939 | mm | |
| Conductor nominal Ø | 0.900 | mm | |
| Conductor cross section | 0.636 | mm² | |
| Aluminium | Resistance min. | 0.0426 | Ω/m |
| Resistance max. | 0.0452 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.718 | kg/km | |
| Copper | Resistance min. | 0.0261 | Ω/m |
| Resistance max. | 0.0277 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 5.675 | kg/km | |
| Ø | Conductor min. | 0.891 | mm |
| Conductor max. | 0.909 | mm | |
| Enamelled grade 1 min. | 0.932 | mm | |
| Enamelled grade 1 max. | 0.959 | mm | |
| Enamelled grade 2 min. | 0.960 | mm | |
| Enamelled grade 2 max. | 0.989 | mm | |
| Conductor nominal Ø | 0.950 | mm | |
| Conductor cross section | 0.709 | mm² | |
| Aluminium | Resistance min. | 0.0382 | Ω/m |
| Resistance max. | 0.0406 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 1.914 | kg/km | |
| Copper | Resistance min. | 0.0234 | Ω/m |
| Resistance max. | 0.0248 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 6.323 | kg/km | |
| Ø | Conductor min. | 0.940 | mm |
| Conductor max. | 0.960 | mm | |
| Enamelled grade 1 min. | 0.984 | mm | |
| Enamelled grade 1 max. | 1.012 | mm | |
| Enamelled grade 2 min. | 1.013 | mm | |
| Enamelled grade 2 max. | 1.044 | mm | |
| Conductor nominal Ø | 1.000 | mm | |
| Conductor cross section | 0.785 | mm² | |
| Aluminium | Resistance min. | 0.0345 | Ω/m |
| Resistance max. | 0.0366 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 2.121 | kg/km | |
| Copper | Resistance min. | 0.0212 | Ω/m |
| Resistance max. | 0.0224 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 7.006 | kg/km | |
| Ø | Conductor min. | 0.990 | mm |
| Conductor max. | 1.010 | mm | |
| Enamelled grade 1 min. | 1.034 | mm | |
| Enamelled grade 1 max. | 1.062 | mm | |
| Enamelled grade 2 min. | 1.063 | mm | |
| Enamelled grade 2 max. | 1.094 | mm | |
| Conductor nominal Ø | 1.060 | mm | |
| Conductor cross section | 0.882 | mm² | |
| Aluminium | Resistance min. | 0.0307 | Ω/m |
| Resistance max. | 0.0326 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 2.383 | kg/km | |
| Copper | Resistance min. | 0.0188 | Ω/m |
| Resistance max. | 0.0199 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 7.872 | kg/km | |
| Ø | Conductor min. | 1.049 | mm |
| Conductor max. | 1.071 | mm | |
| Enamelled grade 1 min. | 1.094 | mm | |
| Enamelled grade 1 max. | 1.124 | mm | |
| Enamelled grade 2 min. | 1.125 | mm | |
| Enamelled grade 2 max. | 1.157 | mm | |
| Conductor nominal Ø | 1.120 | mm | |
| Conductor cross section | 0.985 | mm² | |
| Aluminium | Resistance min. | 0.0275 | Ω/m |
| Resistance max. | 0.0292 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 2.660 | kg/km | |
| Copper | Resistance min. | 0.0169 | Ω/m |
| Resistance max. | 0.0178 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 8.788 | kg/km | |
| Ø | Conductor min. | 1.109 | mm |
| Conductor max. | 1.131 | mm | |
| Enamelled grade 1 min. | 1.154 | mm | |
| Enamelled grade 1 max. | 1.184 | mm | |
| Enamelled grade 2 min. | 1.185 | mm | |
| Enamelled grade 2 max. | 1.217 | mm | |
| Conductor nominal Ø | 1.180 | mm | |
| Conductor cross section | 1.094 | mm² | |
| Aluminium | Resistance min. | 0.0248 | Ω/m |
| Resistance max. | 0.0263 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 2.953 | kg/km | |
| Copper | Resistance min. | 0.0152 | Ω/m |
| Resistance max. | 0.0161 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 9.755 | kg/km | |
| Ø | Conductor min. | 1.168 | mm |
| Conductor max. | 1.192 | mm | |
| Enamelled grade 1 min. | 1.215 | mm | |
| Enamelled grade 1 max. | 1.246 | mm | |
| Enamelled grade 2 min. | 1.247 | mm | |
| Enamelled grade 2 max. | 1.279 | mm | |
| Conductor nominal Ø | 1.250 | mm | |
| Conductor cross section | 1.227 | mm² | |
| Aluminium | Resistance min. | 0.0220 | Ω/m |
| Resistance max. | 0.0234 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 3.313 | kg/km | |
| Copper | Resistance min. | 0.0135 | Ω/m |
| Resistance max. | 0.0143 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 10.946 | kg/km | |
| Ø | Conductor min. | 1.237 | mm |
| Conductor max. | 1.263 | mm | |
| Enamelled grade 1 min. | 1.285 | mm | |
| Enamelled grade 1 max. | 1.316 | mm | |
| Enamelled grade 2 min. | 1.317 | mm | |
| Enamelled grade 2 max. | 1.349 | mm | |
| Conductor nominal Ø | 1.320 | mm | |
| Conductor cross section | 1.368 | mm² | |
| Aluminium | Resistance min. | 0.0198 | Ω/m |
| Resistance max. | 0.0210 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 3.695 | kg/km | |
| Copper | Resistance min. | 0.0121 | Ω/m |
| Resistance max. | 0.0129 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 12.207 | kg/km | |
| Ø | Conductor min. | 1.307 | mm |
| Conductor max. | 1.333 | mm | |
| Enamelled grade 1 min. | 1.356 | mm | |
| Enamelled grade 1 max. | 1.388 | mm | |
| Enamelled grade 2 min. | 1.389 | mm | |
| Enamelled grade 2 max. | 1.422 | mm | |
| Conductor nominal Ø | 1.400 | mm | |
| Conductor cross section | 1.539 | mm² | |
| Aluminium | Resistance min. | 0.0176 | Ω/m |
| Resistance max. | 0.0187 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 4.156 | kg/km | |
| Copper | Resistance min. | 0.0108 | Ω/m |
| Resistance max. | 0.0114 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 13.731 | kg/km | |
| Ø | Conductor min. | 1.386 | mm |
| Conductor max. | 1.414 | mm | |
| Enamelled grade 1 min. | 1.436 | mm | |
| Enamelled grade 1 max. | 1.468 | mm | |
| Enamelled grade 2 min. | 1.469 | mm | |
| Enamelled grade 2 max. | 1.502 | mm | |
| Conductor nominal Ø | 1.500 | mm | |
| Conductor cross section | 1.767 | mm² | |
| Aluminium | Resistance min. | 0.0153 | Ω/m |
| Resistance max. | 0.0163 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 4.771 | kg/km | |
| Copper | Resistance min. | 0.0094 | Ω/m |
| Resistance max. | 0.0100 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 15.763 | kg/km | |
| Ø | Conductor min. | 1.485 | mm |
| Conductor max. | 1.515 | mm | |
| Enamelled grade 1 min. | 1.538 | mm | |
| Enamelled grade 1 max. | 1.570 | mm | |
| Enamelled grade 2 min. | 1.571 | mm | |
| Enamelled grade 2 max. | 1.606 | mm | |
| Conductor nominal Ø | 1.600 | mm | |
| Conductor cross section | 2.011 | mm² | |
| Aluminium | Resistance min. | 0.0135 | Ω/m |
| Resistance max. | 0.0143 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 5.429 | kg/km | |
| Copper | Resistance min. | 0.0083 | Ω/m |
| Resistance max. | 0.0087 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 17.935 | kg/km | |
| Ø | Conductor min. | 1.584 | mm |
| Conductor max. | 1.616 | mm | |
| Enamelled grade 1 min. | 1.638 | mm | |
| Enamelled grade 1 max. | 1.670 | mm | |
| Enamelled grade 2 min. | 1.671 | mm | |
| Enamelled grade 2 max. | 1.706 | mm | |
| Conductor nominal Ø | 1.700 | mm | |
| Conductor cross section | 2.270 | mm² | |
| Aluminium | Resistance min. | 0.0119 | Ω/m |
| Resistance max. | 0.0127 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 6.128 | kg/km | |
| Copper | Resistance min. | 0.0073 | Ω/m |
| Resistance max. | 0.0078 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 20.247 | kg/km | |
| Ø | Conductor min. | 1.683 | mm |
| Conductor max. | 1.717 | mm | |
| Enamelled grade 1 min. | 1.739 | mm | |
| Enamelled grade 1 max. | 1.772 | mm | |
| Enamelled grade 2 min. | 1.773 | mm | |
| Enamelled grade 2 max. | 1.809 | mm | |
| Conductor nominal Ø | 1.800 | mm | |
| Conductor cross section | 2.545 | mm² | |
| Aluminium | Resistance min. | 0.0106 | Ω/m |
| Resistance max. | 0.0113 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 6.871 | kg/km | |
| Copper | Resistance min. | 0.0065 | Ω/m |
| Resistance max. | 0.0069 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 22.699 | kg/km | |
| Ø | Conductor min. | 1.782 | mm |
| Conductor max. | 1.818 | mm | |
| Enamelled grade 1 min. | 1.839 | mm | |
| Enamelled grade 1 max. | 1.872 | mm | |
| Enamelled grade 2 min. | 1.873 | mm | |
| Enamelled grade 2 max. | 1.909 | mm | |
| Conductor nominal Ø | 1.900 | mm | |
| Conductor cross section | 2.835 | mm² | |
| Aluminium | Resistance min. | 0.0096 | Ω/m |
| Resistance max. | 0.0101 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 7.655 | kg/km | |
| Copper | Resistance min. | 0.0059 | Ω/m |
| Resistance max. | 0.0062 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 25.291 | kg/km | |
| Ø | Conductor min. | 1.881 | mm |
| Conductor max. | 1.919 | mm | |
| Enamelled grade 1 min. | 1.940 | mm | |
| Enamelled grade 1 max. | 1.974 | mm | |
| Enamelled grade 2 min. | 1.975 | mm | |
| Enamelled grade 2 max. | 2.012 | mm | |
| Conductor nominal Ø | 2.000 | mm | |
| Conductor cross section | 3.142 | mm² | |
| Aluminium | Resistance min. | 0.0086 | Ω/m |
| Resistance max. | 0.0091 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 8.482 | kg/km | |
| Copper | Resistance min. | 0.0053 | Ω/m |
| Resistance max. | 0.0056 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 28.023 | kg/km | |
| Ø | Conductor min. | 1.980 | mm |
| Conductor max. | 2.020 | mm | |
| Enamelled grade 1 min. | 2.040 | mm | |
| Enamelled grade 1 max. | 2.074 | mm | |
| Enamelled grade 2 min. | 2.075 | mm | |
| Enamelled grade 2 max. | 2.112 | mm | |
| Conductor nominal Ø | 2.120 | mm | |
| Conductor cross section | 3.530 | mm² | |
| Aluminium | Resistance min. | 0.0077 | Ω/m |
| Resistance max. | 0.0081 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 9.531 | kg/km | |
| Copper | Resistance min. | 0.0047 | Ω/m |
| Resistance max. | 0.0050 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 31.487 | kg/km | |
| Ø | Conductor min. | 2.099 | mm |
| Conductor max. | 2.141 | mm | |
| Enamelled grade 1 min. | 2.161 | mm | |
| Enamelled grade 1 max. | 2.196 | mm | |
| Enamelled grade 2 min. | 2.197 | mm | |
| Enamelled grade 2 max. | 2.235 | mm | |
| Conductor nominal Ø | 2.240 | mm | |
| Conductor cross section | 3.941 | mm² | |
| Aluminium | Resistance min. | 0.0069 | Ω/m |
| Resistance max. | 0.0073 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 10.640 | kg/km | |
| Copper | Resistance min. | 0.0042 | Ω/m |
| Resistance max. | 0.0045 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 35.152 | kg/km | |
| Ø | Conductor min. | 2.218 | mm |
| Conductor max. | 2.262 | mm | |
| Enamelled grade 1 min. | 2.281 | mm | |
| Enamelled grade 1 max. | 2.316 | mm | |
| Enamelled grade 2 min. | 2.317 | mm | |
| Enamelled grade 2 max. | 2.355 | mm | |
| Conductor nominal Ø | 2.360 | mm | |
| Conductor cross section | 4.374 | mm² | |
| Aluminium | Resistance min. | 0.0062 | Ω/m |
| Resistance max. | 0.0066 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 11.811 | kg/km | |
| Copper | Resistance min. | 0.0038 | Ω/m |
| Resistance max. | 0.0040 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 39.019 | kg/km | |
| Ø | Conductor min. | 2.336 | mm |
| Conductor max. | 2.384 | mm | |
| Enamelled grade 1 min. | 2.402 | mm | |
| Enamelled grade 1 max. | 2.438 | mm | |
| Enamelled grade 2 min. | 2.439 | mm | |
| Enamelled grade 2 max. | 2.478 | mm | |
| Conductor nominal Ø | 2.500 | mm | |
| Conductor cross section | 4.909 | mm² | |
| Aluminium | Resistance min. | 0.0055 | Ω/m |
| Resistance max. | 0.0059 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 13.254 | kg/km | |
| Copper | Resistance min. | 0.0034 | Ω/m |
| Resistance max. | 0.0036 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 43.786 | kg/km | |
| Ø | Conductor min. | 2.475 | mm |
| Conductor max. | 2.525 | mm | |
| Enamelled grade 1 min. | 2.542 | mm | |
| Enamelled grade 1 max. | 2.578 | mm | |
| Enamelled grade 2 min. | 2.579 | mm | |
| Enamelled grade 2 max. | 2.618 | mm | |
| Conductor nominal Ø | 2.650 | mm | |
| Conductor cross section | 5.515 | mm² | |
| Aluminium | Resistance min. | 0.0049 | Ω/m |
| Resistance max. | 0.0052 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 14.892 | kg/km | |
| Copper | Resistance min. | 0.0030 | Ω/m |
| Resistance max. | 0.0032 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 49.198 | kg/km | |
| Ø | Conductor min. | 2.623 | mm |
| Conductor max. | 2.677 | mm | |
| Enamelled grade 1 min. | 2.693 | mm | |
| Enamelled grade 1 max. | 2.730 | mm | |
| Enamelled grade 2 min. | 2.731 | mm | |
| Enamelled grade 2 max. | 2.772 | mm | |
| Conductor nominal Ø | 2.800 | mm | |
| Conductor cross section | 6.158 | mm² | |
| Aluminium | Resistance min. | 0.0044 | Ω/m |
| Resistance max. | 0.0047 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 16.625 | kg/km | |
| Copper | Resistance min. | 0.0027 | Ω/m |
| Resistance max. | 0.0029 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 54.925 | kg/km | |
| Ø | Conductor min. | 2.772 | mm |
| Conductor max. | 2.828 | mm | |
| Enamelled grade 1 min. | 2.843 | mm | |
| Enamelled grade 1 max. | 2.880 | mm | |
| Enamelled grade 2 min. | 2.881 | mm | |
| Enamelled grade 2 max. | 2.922 | mm | |
| Conductor nominal Ø | 3.000 | mm | |
| Conductor cross section | 7.069 | mm² | |
| Aluminium | Resistance min. | 0.0038 | Ω/m |
| Resistance max. | 0.0041 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 19.085 | kg/km | |
| Copper | Resistance min. | 0.0024 | Ω/m |
| Resistance max. | 0.0025 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 63.052 | kg/km | |
| Ø | Conductor min. | 2.970 | mm |
| Conductor max. | 3.030 | mm | |
| Enamelled grade 1 min. | 3.045 | mm | |
| Enamelled grade 1 max. | 3.083 | mm | |
| Enamelled grade 2 min. | 3.084 | mm | |
| Enamelled grade 2 max. | 3.126 | mm | |
| Conductor nominal Ø | 3.150 | mm | |
| Conductor cross section | 7.793 | mm² | |
| Aluminium | Resistance min. | 0.0035 | Ω/m |
| Resistance max. | 0.0037 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 21.041 | kg/km | |
| Copper | Resistance min. | 0.0021 | Ω/m |
| Resistance max. | 0.0023 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 69.515 | kg/km | |
| Ø | Conductor min. | 3.118 | mm |
| Conductor max. | 3.182 | mm | |
| Enamelled grade 1 min. | 3.195 | mm | |
| Enamelled grade 1 max. | 3.233 | mm | |
| Enamelled grade 2 min. | 3.234 | mm | |
| Enamelled grade 2 max. | 3.276 | mm | |
| Conductor nominal Ø | 3.350 | mm | |
| Conductor cross section | 8.814 | mm² | |
| Aluminium | Resistance min. | 0.0031 | Ω/m |
| Resistance max. | 0.0033 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 23.798 | kg/km | |
| Copper | Resistance min. | 0.0019 | Ω/m |
| Resistance max. | 0.0020 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 78.622 | kg/km | |
| Ø | Conductor min. | 3.316 | mm |
| Conductor max. | 3.384 | mm | |
| Enamelled grade 1 min. | 3.396 | mm | |
| Enamelled grade 1 max. | 3.435 | mm | |
| Enamelled grade 2 min. | 3.436 | mm | |
| Enamelled grade 2 max. | 3.479 | mm | |
| Conductor nominal Ø | 3.550 | mm | |
| Conductor cross section | 9.898 | mm² | |
| Aluminium | Resistance min. | 0.0027 | Ω/m |
| Resistance max. | 0.0029 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 26.725 | kg/km | |
| Copper | Resistance min. | 0.0017 | Ω/m |
| Resistance max. | 0.0018 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 88.290 | kg/km | |
| Ø | Conductor min. | 3.514 | mm |
| Conductor max. | 3.586 | mm | |
| Enamelled grade 1 min. | 3.596 | mm | |
| Enamelled grade 1 max. | 3.635 | mm | |
| Enamelled grade 2 min. | 3.636 | mm | |
| Enamelled grade 2 max. | 3.679 | mm | |
| Conductor nominal Ø | 3.750 | mm | |
| Conductor cross section | 11.045 | mm² | |
| Aluminium | Resistance min. | 0.0025 | Ω/m |
| Resistance max. | 0.0026 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 29.821 | kg/km | |
| Copper | Resistance min. | 0.0015 | Ω/m |
| Resistance max. | 0.0016 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 98.518 | kg/km | |
| Ø | Conductor min. | 3.712 | mm |
| Conductor max. | 3.788 | mm | |
| Enamelled grade 1 min. | 3.797 | mm | |
| Enamelled grade 1 max. | 3.838 | mm | |
| Enamelled grade 2 min. | 3.839 | mm | |
| Enamelled grade 2 max. | 3.883 | mm | |
| Conductor nominal Ø | 4.000 | mm | |
| Conductor cross section | 12.566 | mm² | |
| Aluminium | Resistance min. | 0.0022 | Ω/m |
| Resistance max. | 0.0023 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 33.929 | kg/km | |
| Copper | Resistance min. | 0.0013 | Ω/m |
| Resistance max. | 0.0014 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 112.092 | kg/km | |
| Ø | Conductor min. | 3.960 | mm |
| Conductor max. | 4.040 | mm | |
| Enamelled grade 1 min. | 4.047 | mm | |
| Enamelled grade 1 max. | 4.088 | mm | |
| Enamelled grade 2 min. | 4.089 | mm | |
| Enamelled grade 2 max. | 4.133 | mm | |
| Conductor nominal Ø | 4.250 | mm | |
| Conductor cross section | 14.186 | mm² | |
| Aluminium | Resistance min. | 0.0019 | Ω/m |
| Resistance max. | 0.0020 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 38.303 | kg/km | |
| Copper | Resistance min. | 0.0012 | Ω/m |
| Resistance max. | 0.0012 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 126.541 | kg/km | |
| Ø | Conductor min. | 4.207 | mm |
| Conductor max. | 4.293 | mm | |
| Enamelled grade 1 min. | 4.299 | mm | |
| Enamelled grade 1 max. | 4.341 | mm | |
| Enamelled grade 2 min. | 4.342 | mm | |
| Enamelled grade 2 max. | 4.387 | mm | |
| Conductor nominal Ø | 4.500 | mm | |
| Conductor cross section | 15.904 | mm² | |
| Aluminium | Resistance min. | 0.0017 | Ω/m |
| Resistance max. | 0.0018 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 42.942 | kg/km | |
| Copper | Resistance min. | 0.0010 | Ω/m |
| Resistance max. | 0.0011 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 141.866 | kg/km | |
| Ø | Conductor min. | 4.455 | mm |
| Conductor max. | 4.545 | mm | |
| Enamelled grade 1 min. | 4.549 | mm | |
| Enamelled grade 1 max. | 4.591 | mm | |
| Enamelled grade 2 min. | 4.592 | mm | |
| Enamelled grade 2 max. | 4.637 | mm | |
| Conductor nominal Ø | 4.750 | mm | |
| Conductor cross section | 17.721 | mm² | |
| Aluminium | Resistance min. | 0.0015 | Ω/m |
| Resistance max. | 0.0016 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 47.845 | kg/km | |
| Copper | Resistance min. | 0.0009 | Ω/m |
| Resistance max. | 0.0010 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 158.067 | kg/km | |
| Ø | Conductor min. | 4.702 | mm |
| Conductor max. | 4.798 | mm | |
| Enamelled grade 1 min. | 4.800 | mm | |
| Enamelled grade 1 max. | 4.843 | mm | |
| Enamelled grade 2 min. | 4.844 | mm | |
| Enamelled grade 2 max. | 4.891 | mm | |
| Conductor nominal Ø | 5.000 | mm | |
| Conductor cross section | 19.635 | mm² | |
| Aluminium | Resistance min. | 0.0014 | Ω/m |
| Resistance max. | 0.0015 | Ω/m | |
| Weight (only conductor, 2.7 g/cm³) | 53.014 | kg/km | |
| Copper | Resistance min. | 0.0008 | Ω/m |
| Resistance max. | 0.0009 | Ω/m | |
| Weight (only conductor, 8.92 g/cm³) | 175.144 | kg/km | |
| Ø | Conductor min. | 4.950 | mm |
| Conductor max. | 5.050 | mm | |
| Enamelled grade 1 min. | 5.050 | mm | |
| Enamelled grade 1 max. | 5.093 | mm | |
| Enamelled grade 2 min. | 5.094 | mm | |
| Enamelled grade 2 max. | 5.141 | mm | |
